Crankcase Emission Control System: Components

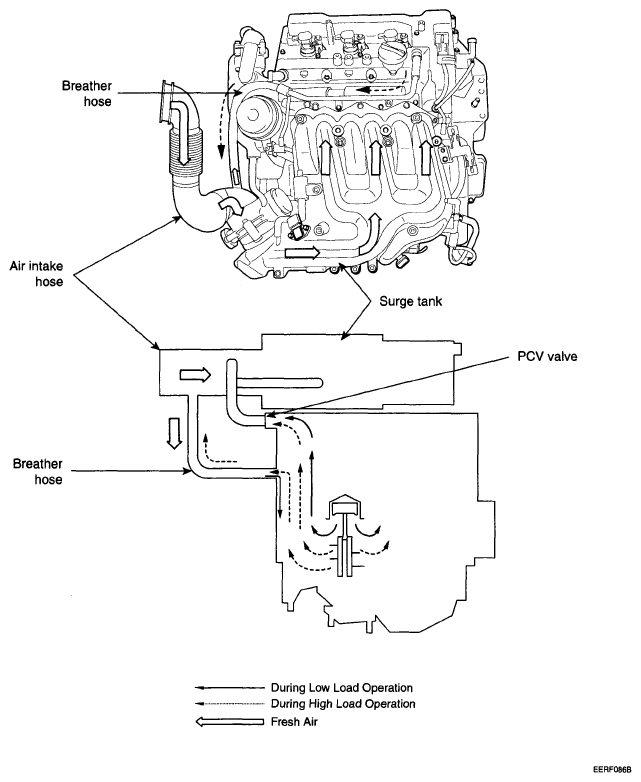

Fig 1: Identifying Crankcase Emission Control System
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
