CVVT Oil Temperature Sensor (OTS)
›
Inspection
›
Schematic Diagram
Schematic Diagram

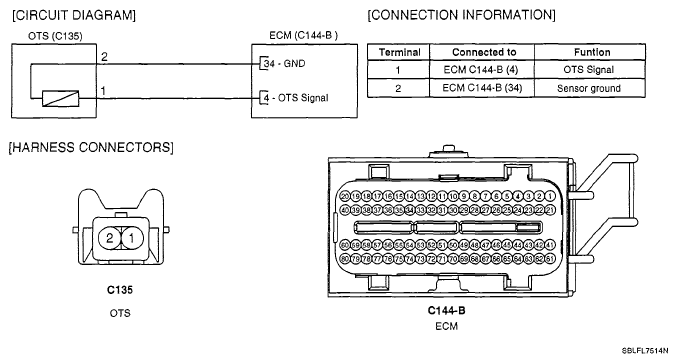

Fig 1: Identifying OTS Connector & Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
