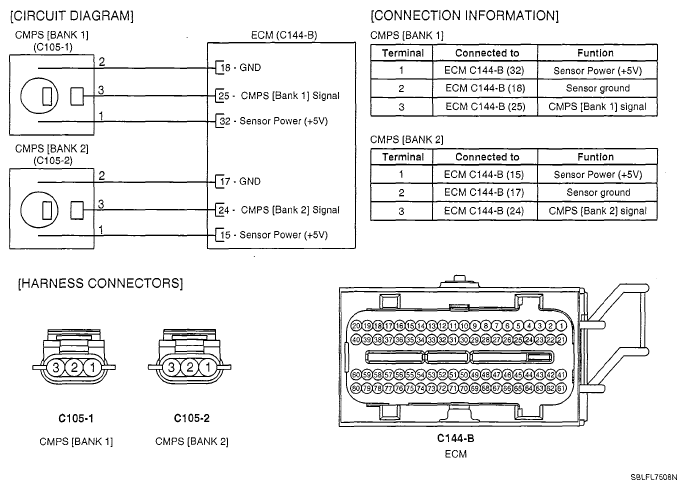

Home › Kia › 2007 › Sorento Base, A5SR2 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Gasoline Engine Control System › Camshaft Position Sensor (CMPS) › Inspection › Schematic Diagram
