Gasoline Engine Control System
›
Component Location
Component Location

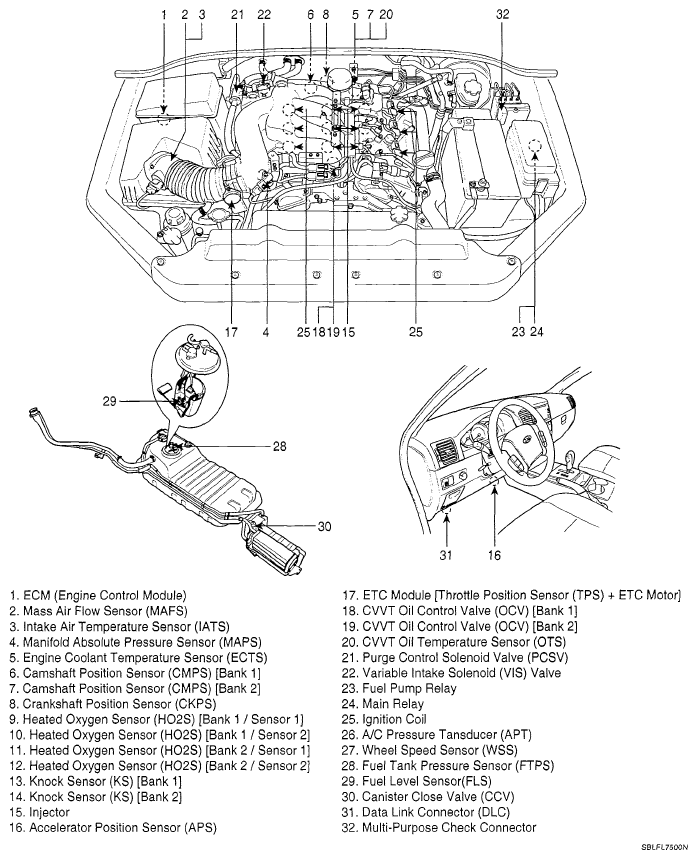

Fig 1: Identifying Engine Control System Component Locations (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

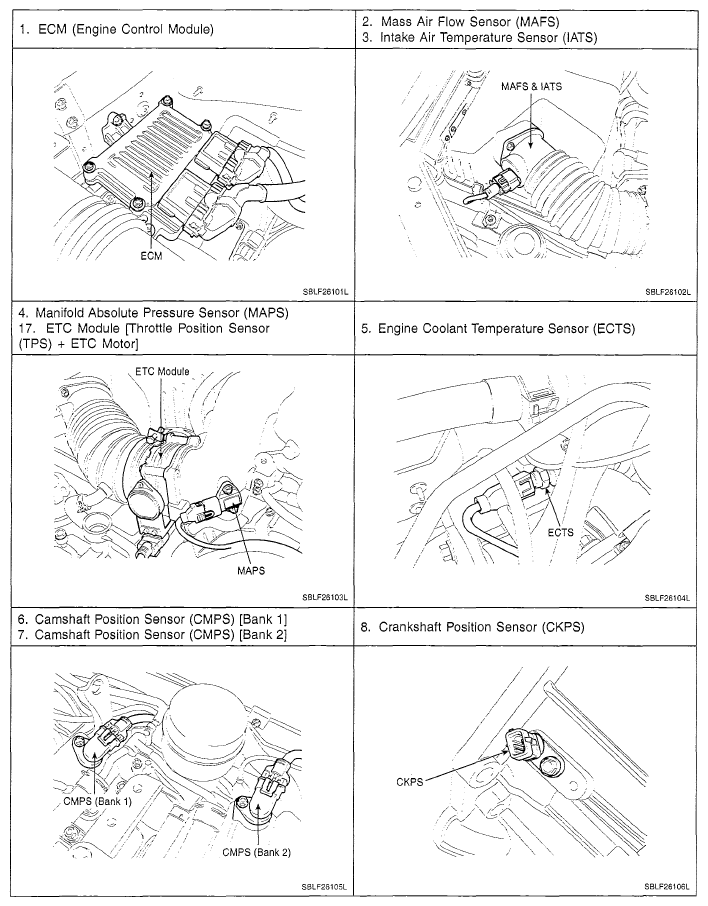

Fig 2: Identifying Engine Control System Component Locations (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

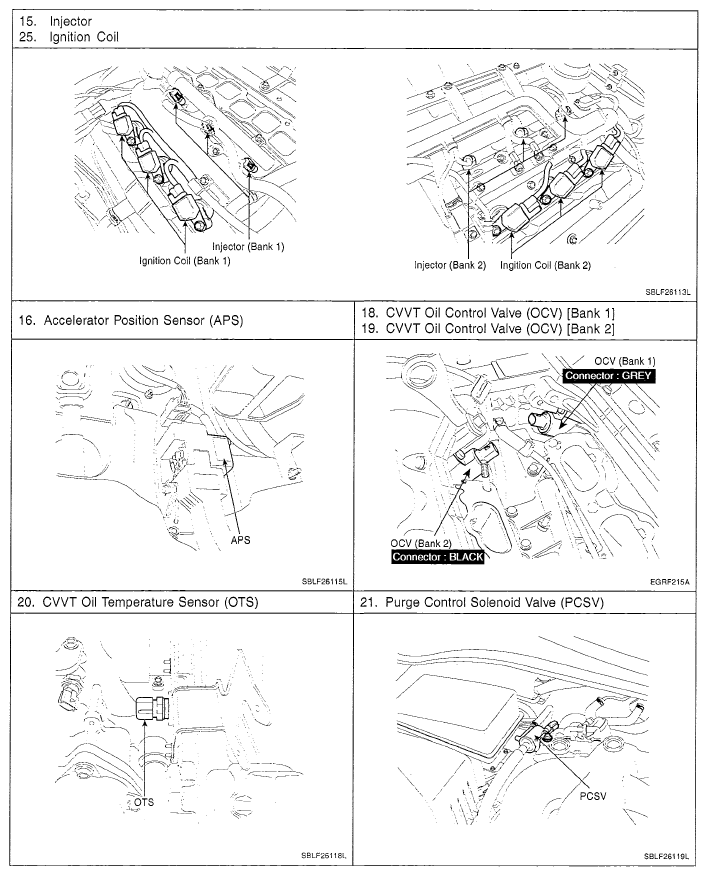

Fig 3: Identifying Engine Control System Component Locations (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

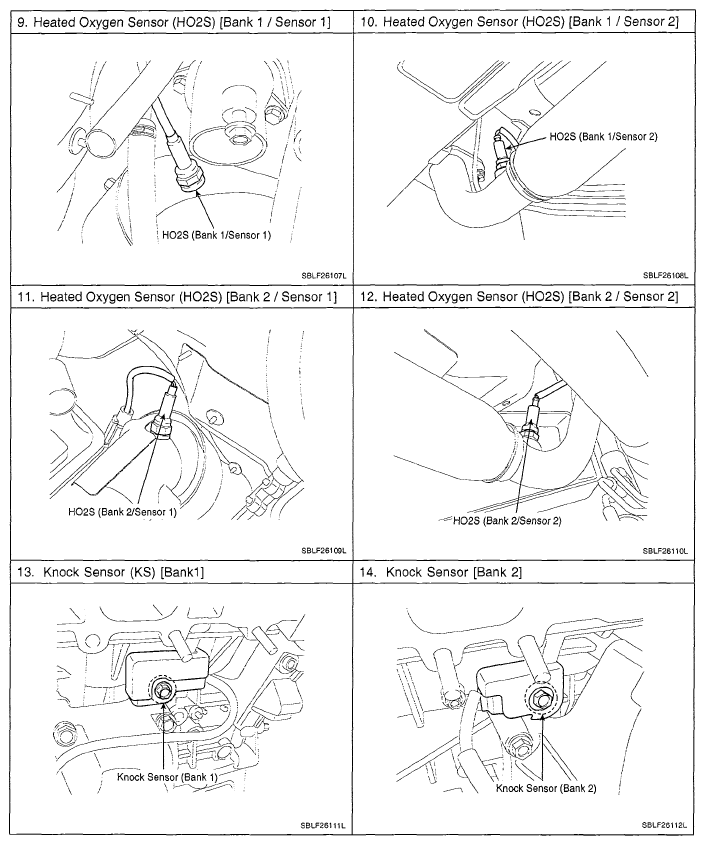

Fig 4: Identifying Engine Control System Component Locations (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

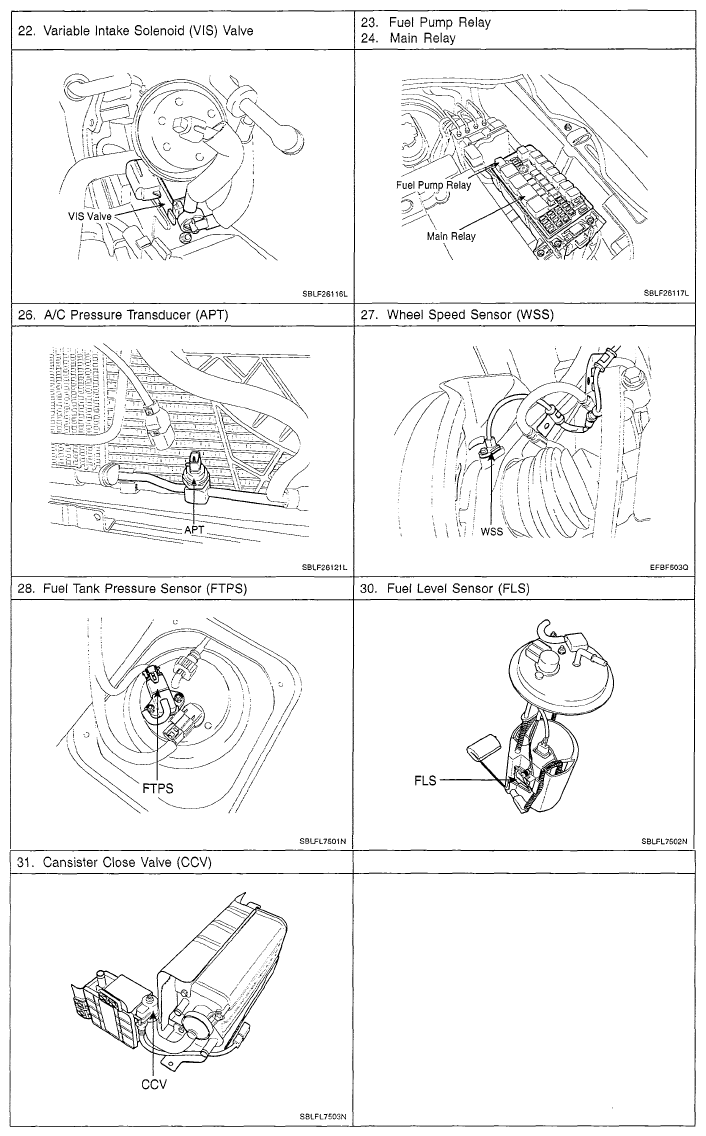

Fig 5: Identifying Engine Control System Component Locations (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
