Sorento Base, A5SR2
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Gasoline Engine Control System
›
Injector
›
Inspection
›
Schematic Diagram
Schematic Diagram

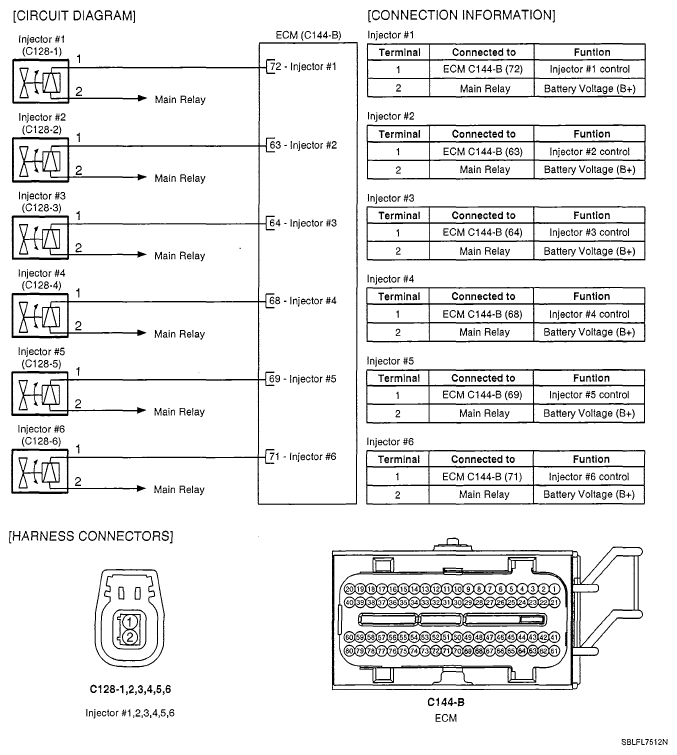

Fig 1: Connector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
