Knock Sensor (KS)
›
Inspection
›
Schematic Diagram
Schematic Diagram

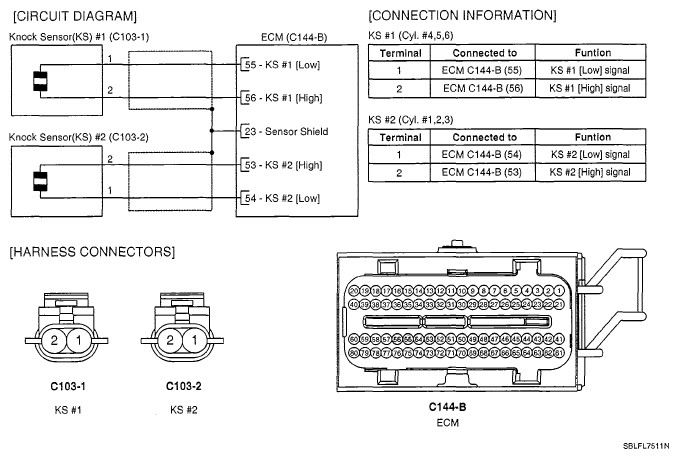

Fig 1: Knock Sensor Connector & Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
