Cruise Control Main Switch Connector End View
Cruise Control Main Switch Connector End View

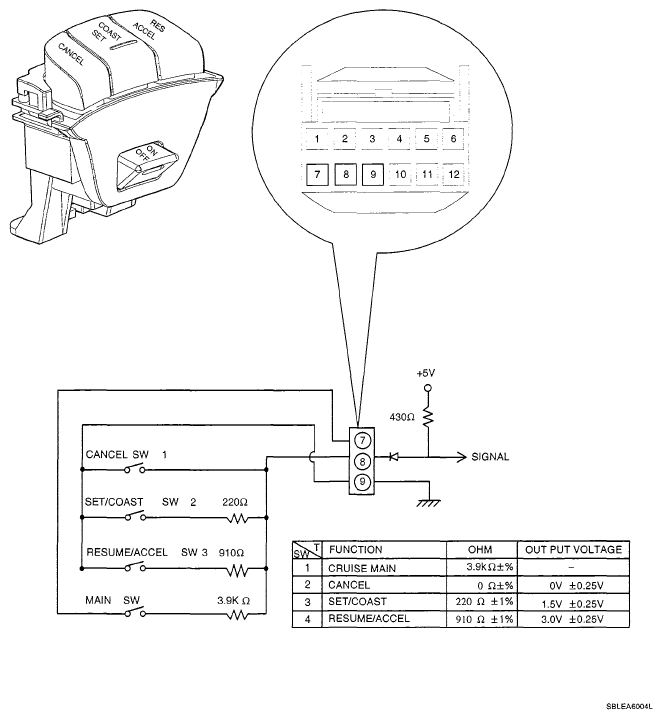

Fig 1: Cruise Control Main Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
