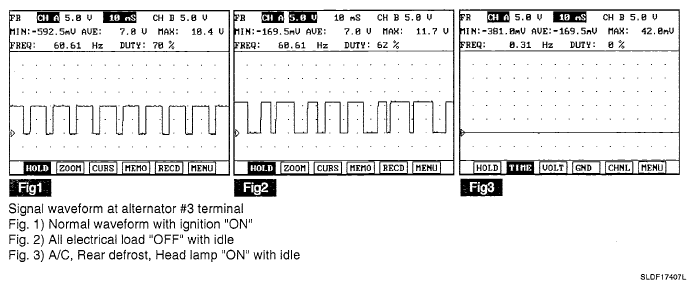

Home › Kia › 2007 › Spectra EX, 2.0 2, Standard › Repair and Diagnosis › Engine Performance › System › DTC Troubleshooting Procedures › Inspection Chart For Diagnostic Trouble Codes (DTC) › DTC P0625 Generator Field/F Terminal Circuit Low › Signal Waveform And Data
