Clutch Pedal: Components

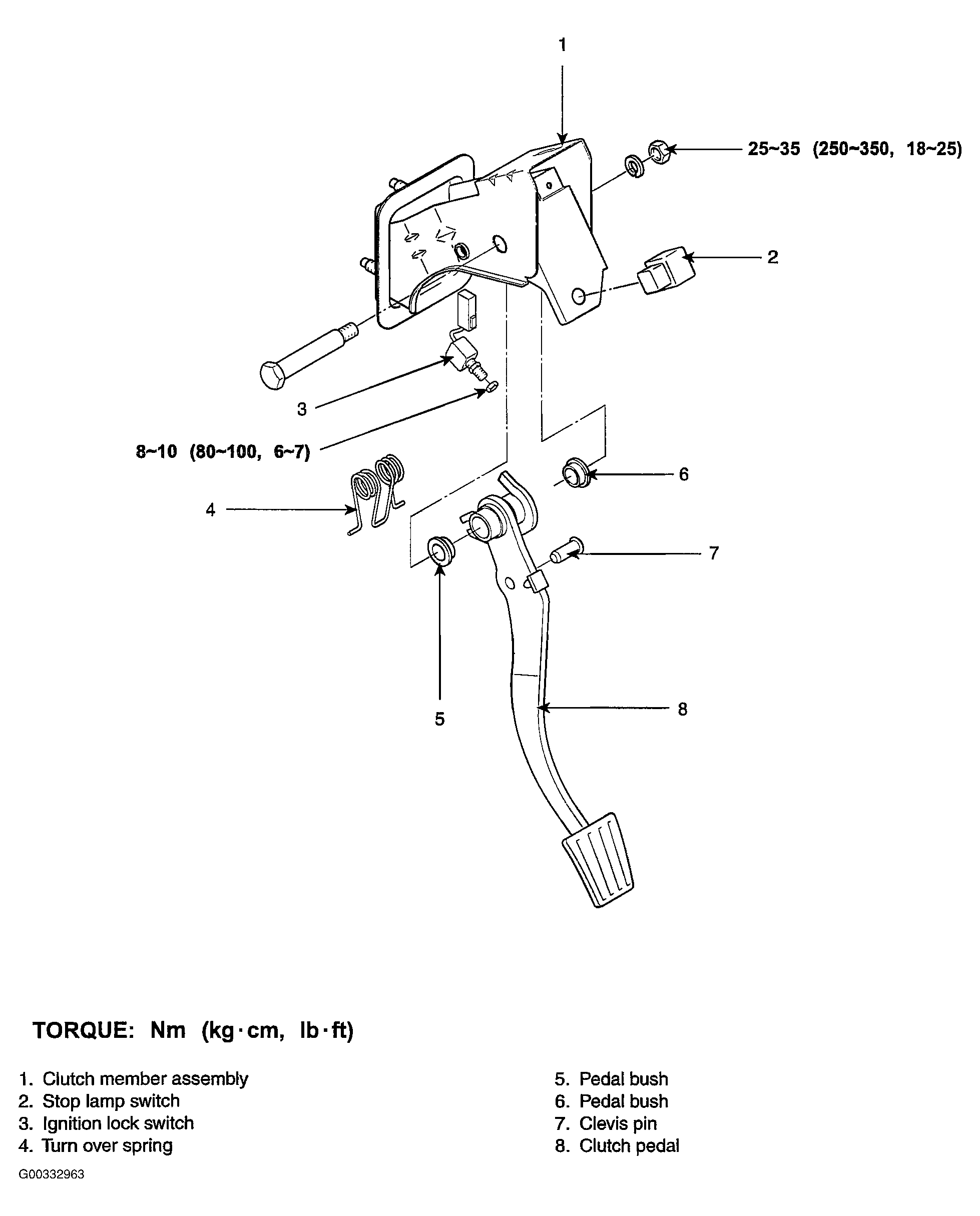

Fig 1: Exploded View Of Clutch Pedal Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
