Circuit Diagram
Circuit Diagram

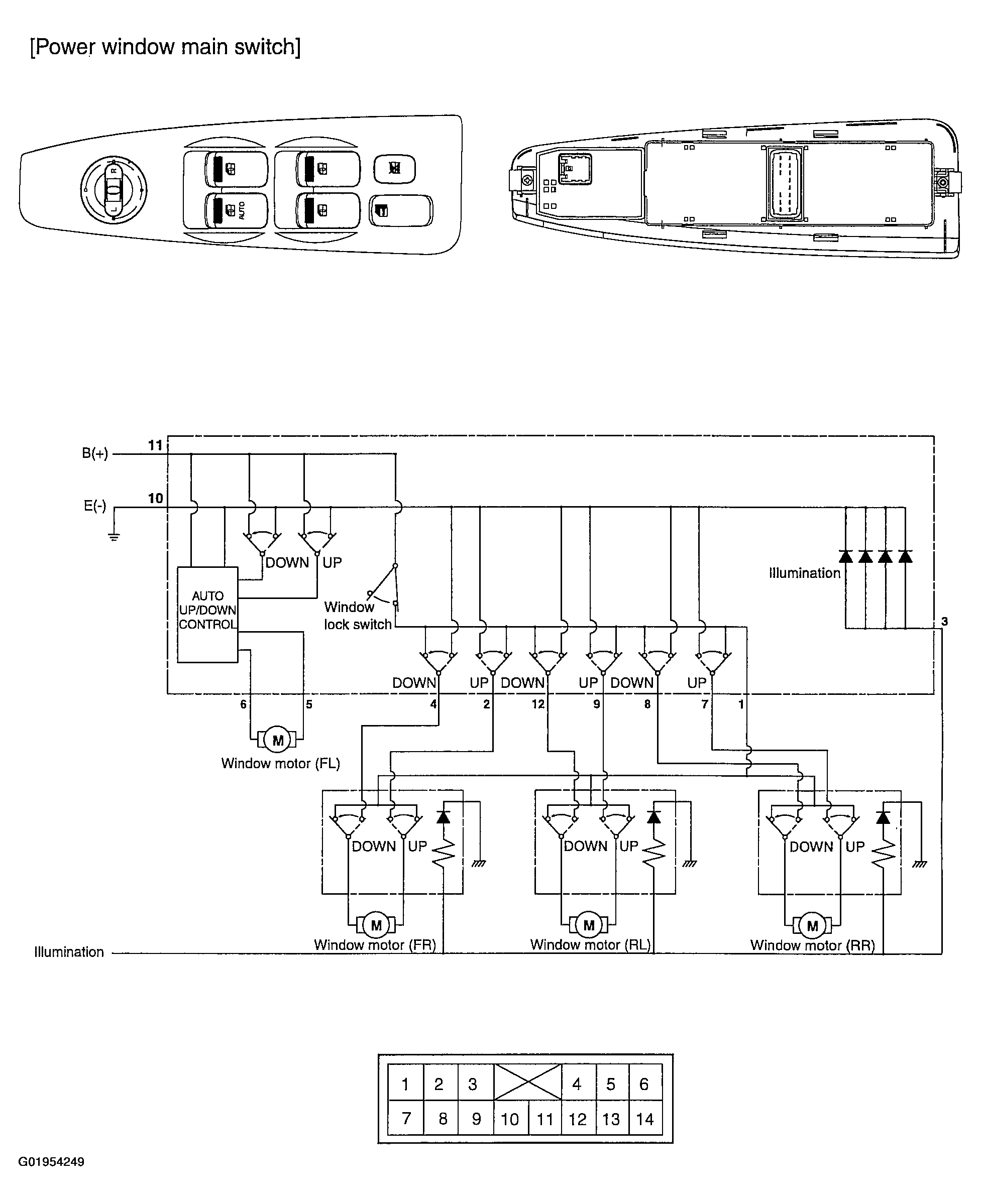

Fig 1: Illustrating Main Power Window Switch & Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

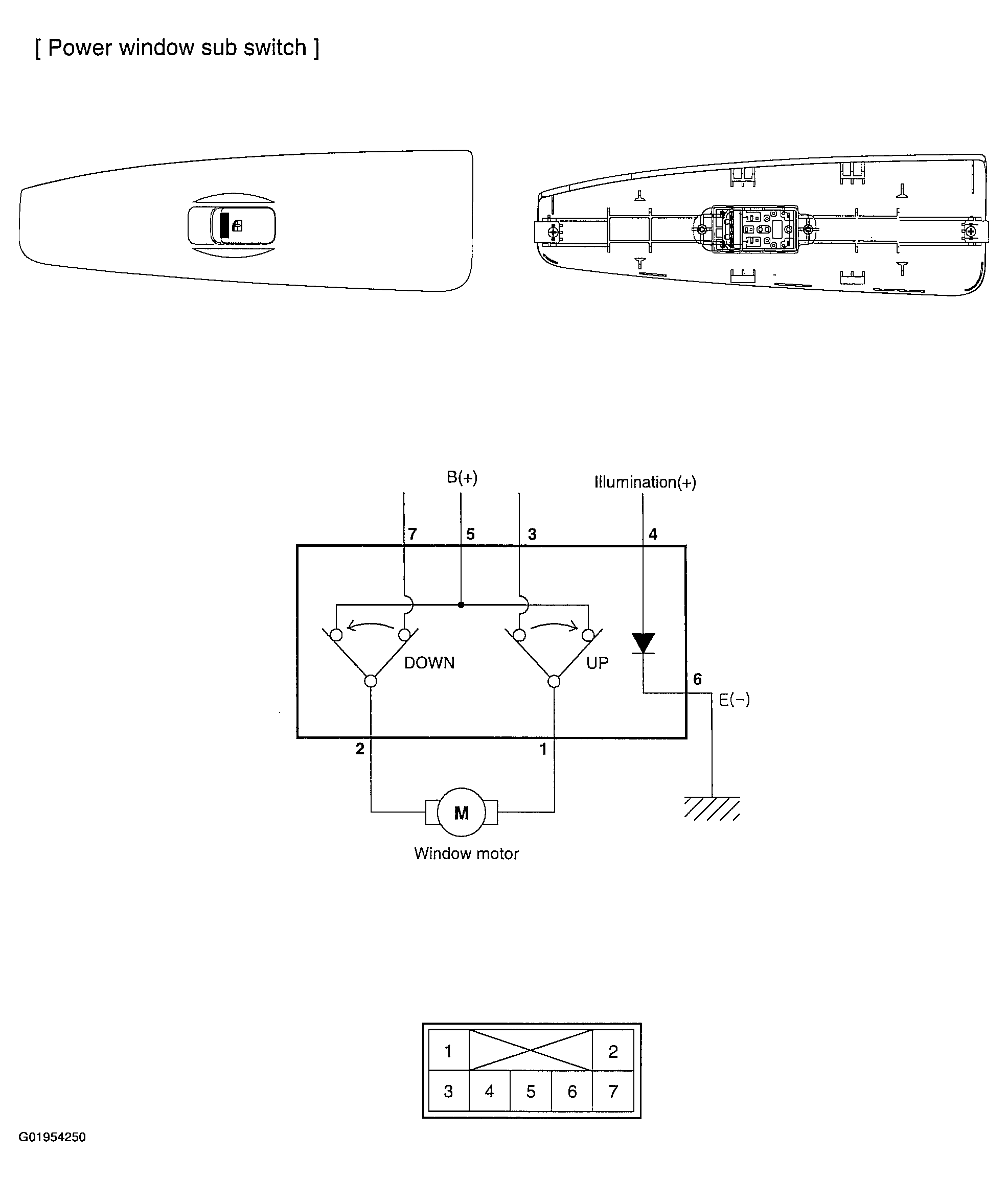

Fig 2: Illustrating Power Window Sub Switch & Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
