Component Location
Component Location

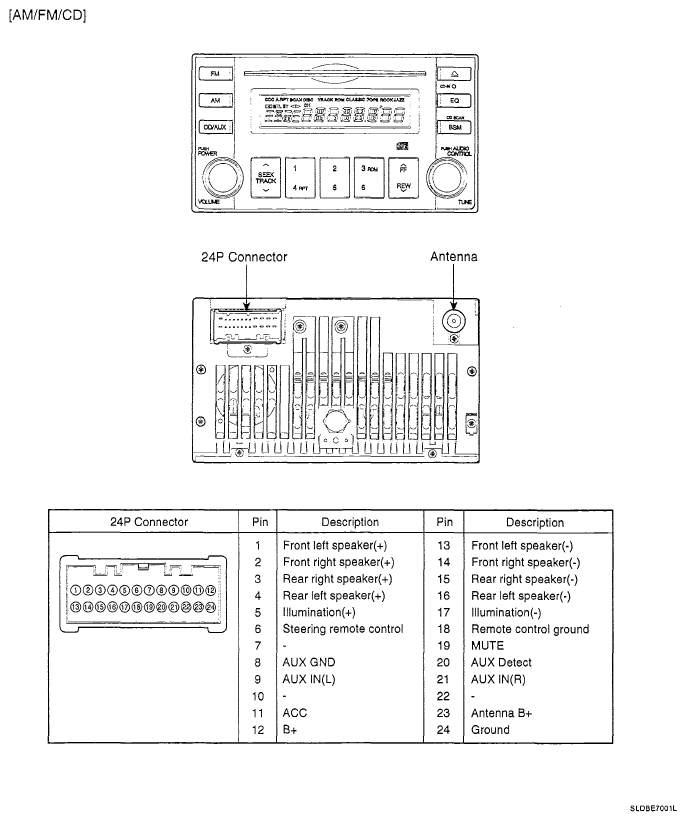

Fig 1: Identifying Audio Unit Component Location (AM/FM/CD)
Courtesy of KIA MOTORS AMERICA, INC.

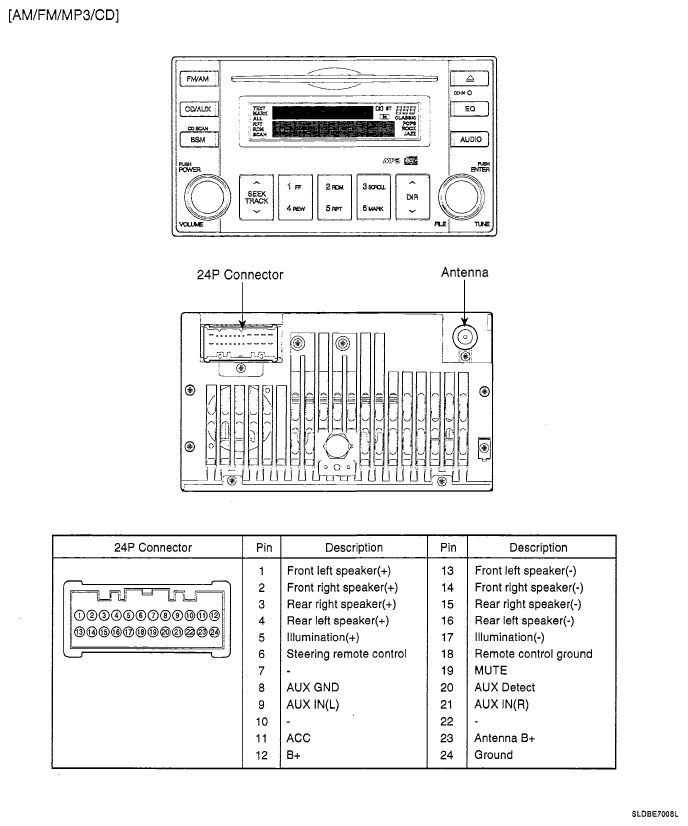

Fig 2: Identifying Audio Unit Component Location (AM/FM/MP3/CD)
Courtesy of KIA MOTORS AMERICA, INC.

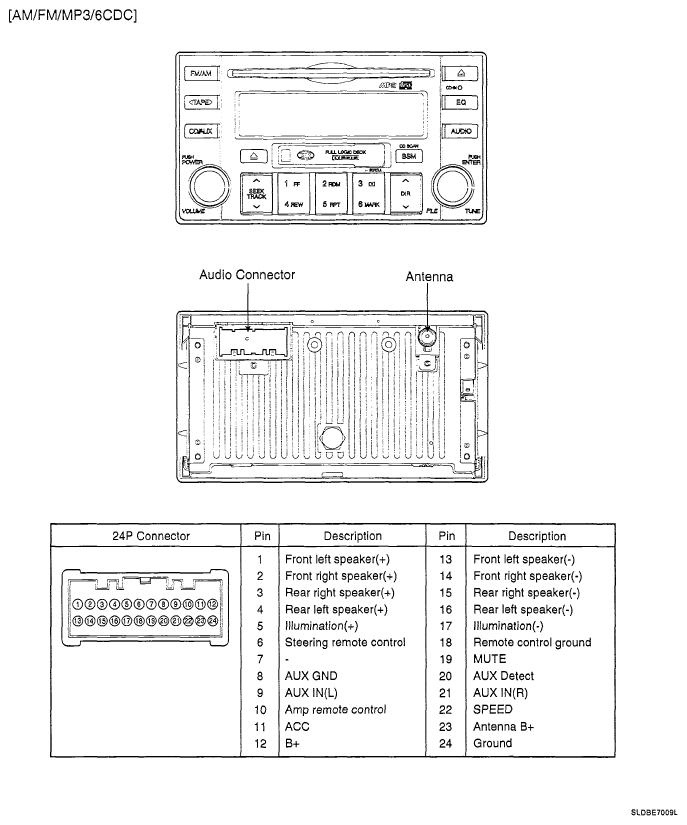

Fig 3: Identifying Audio Unit Component Location (AM/FM/MP3/6CDC)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
