Camshaft Position Sensor (CMPS): Inspection: Waveform

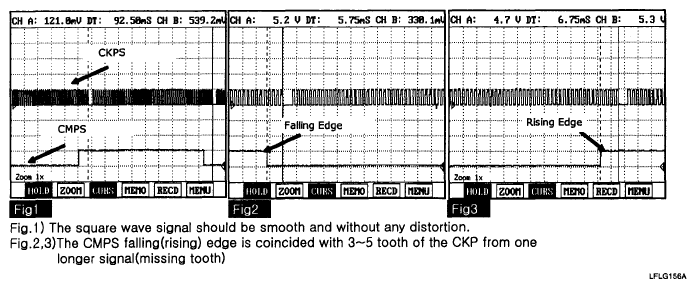

Fig 1: Identifying CMPS Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
