Fuel Tank Pressure Sensor (Ftps)
›
Inspection
›
Schematic Diagram
Schematic Diagram

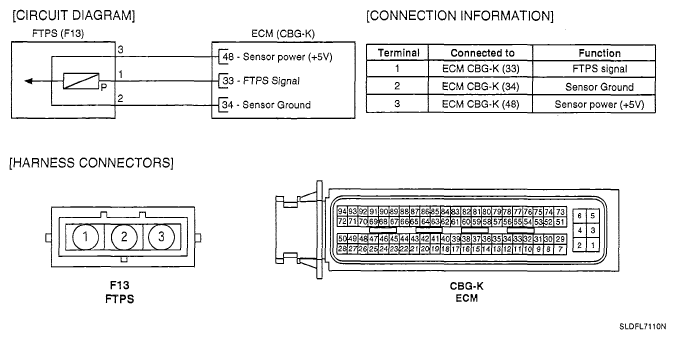

Fig 1: Fuel Tank Pressure Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
