Injector
›
Inspection
›
Circuit Diagram
Circuit Diagram

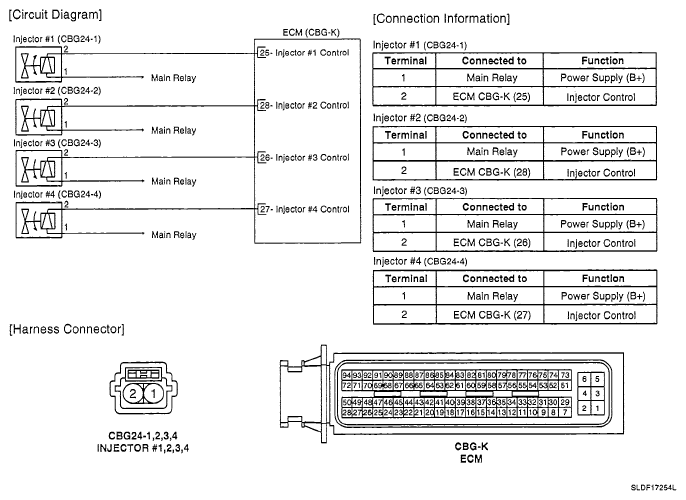

Fig 1: Injector - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
