Intake Air Temperature Sensor (IATS)
›
Inspection
›
Circuit Diagram
Circuit Diagram

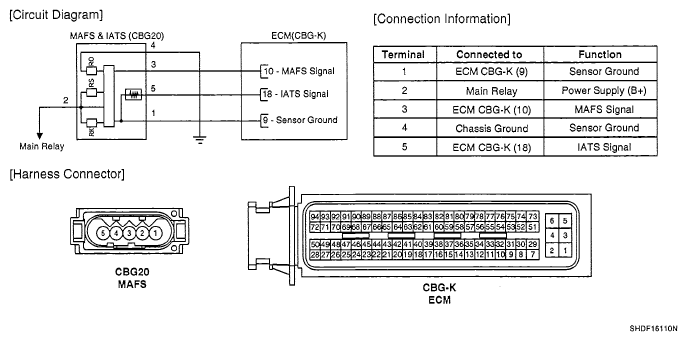

Fig 1: Intake Air Temperature Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
