Throttle Position Sensor (TPS)
›
Inspection
›
Circuit Diagram
Circuit Diagram

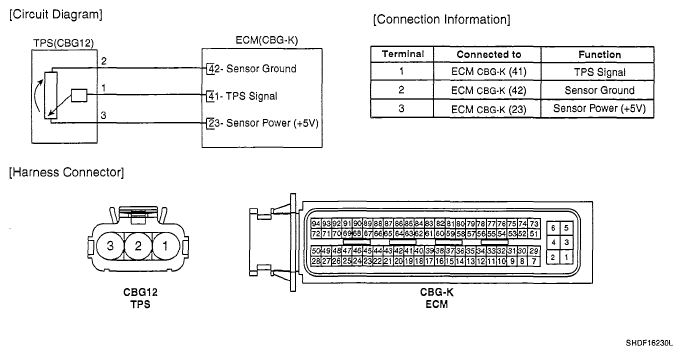

Fig 1: Throttle Position Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
