Power Door Locks: Components

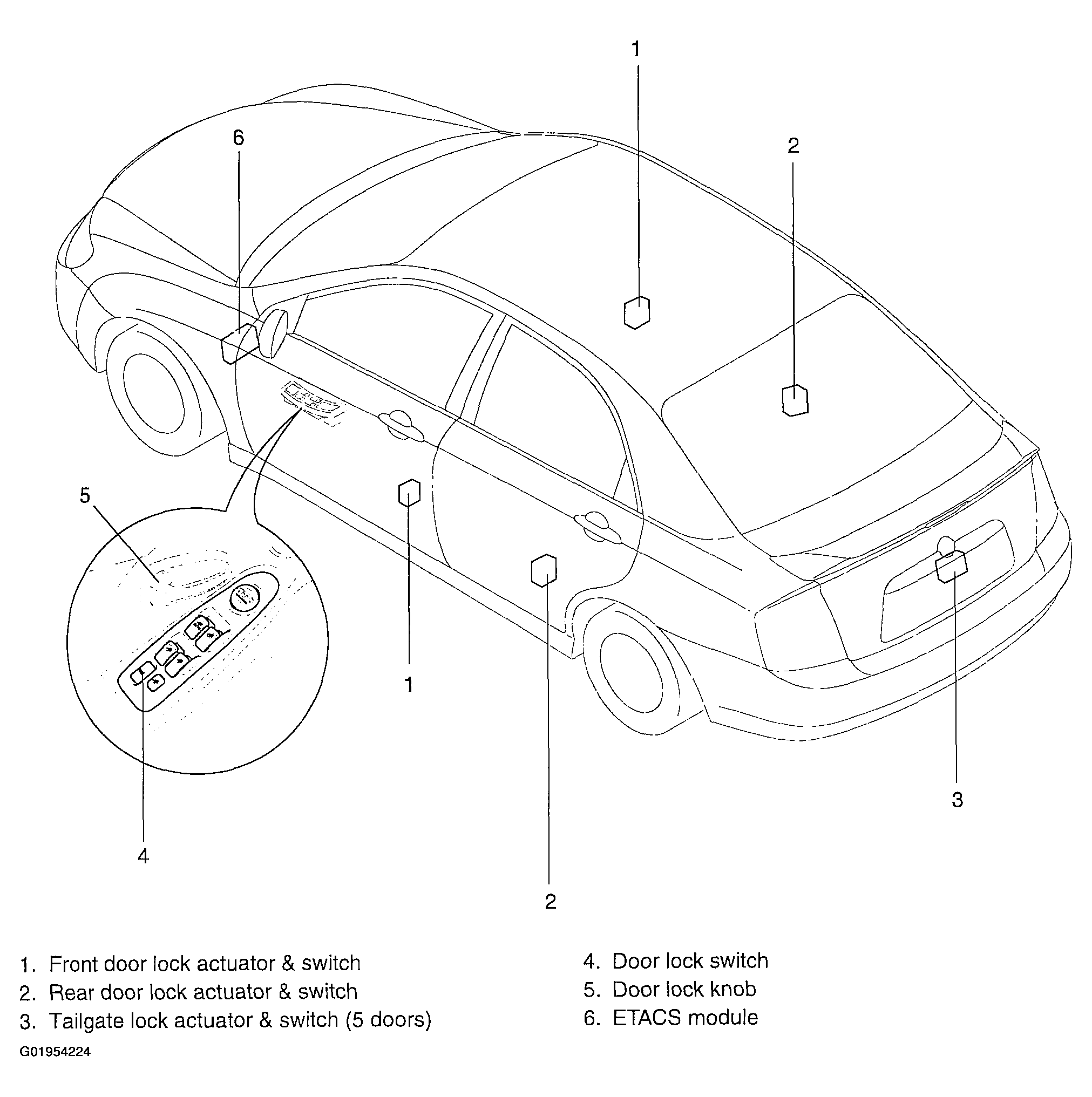

Fig 1: Illustrating Power Door Lock Component Locations
G01954224Courtesy of KIA MOTORS AMERICA, INC.
