Repair and Diagnosis: Transmission: Clutch: General: Components

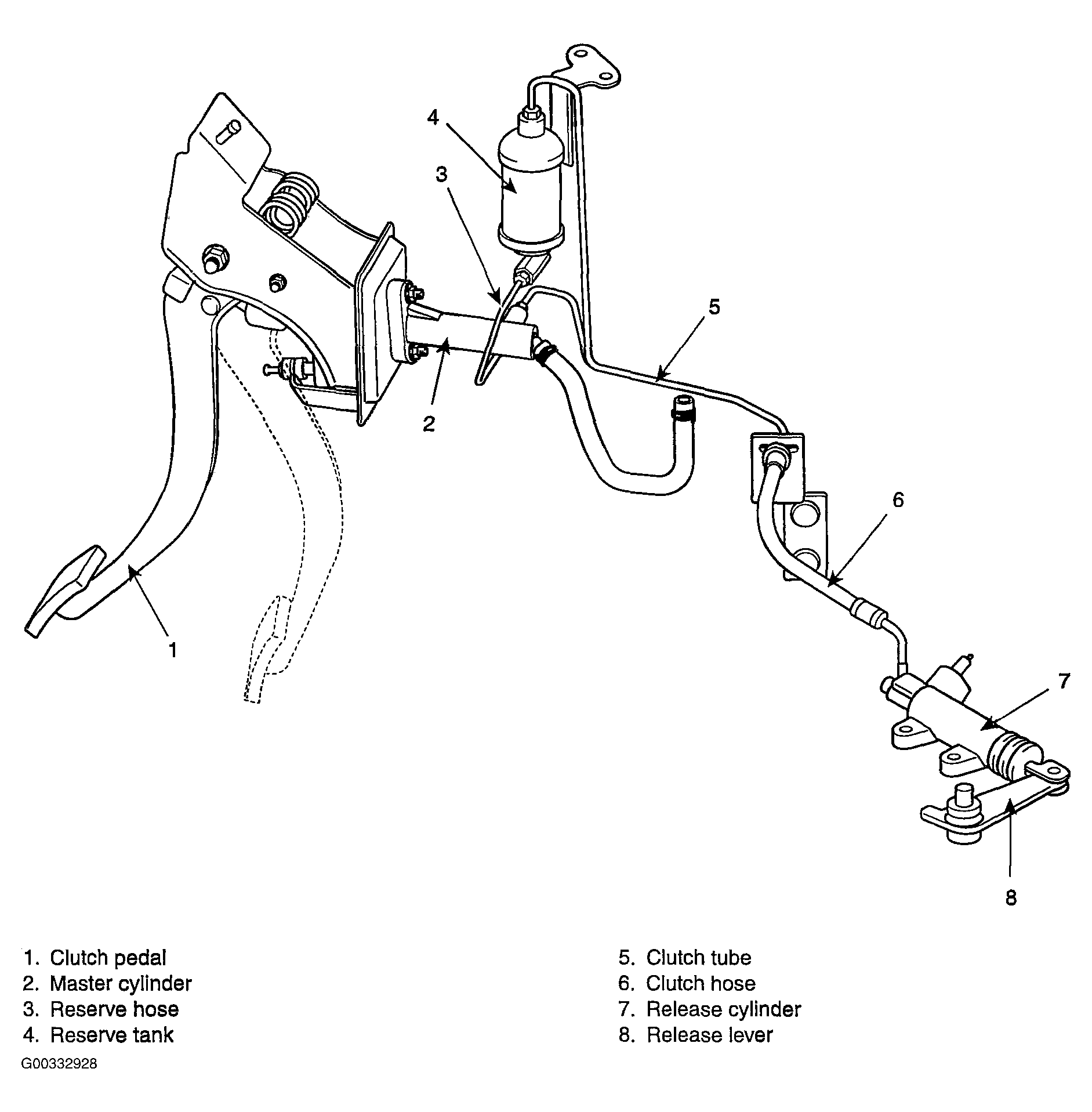

Fig 1: Clutch System Components (1 Of 3)
G00332928Courtesy of KIA MOTORS AMERICA, INC.

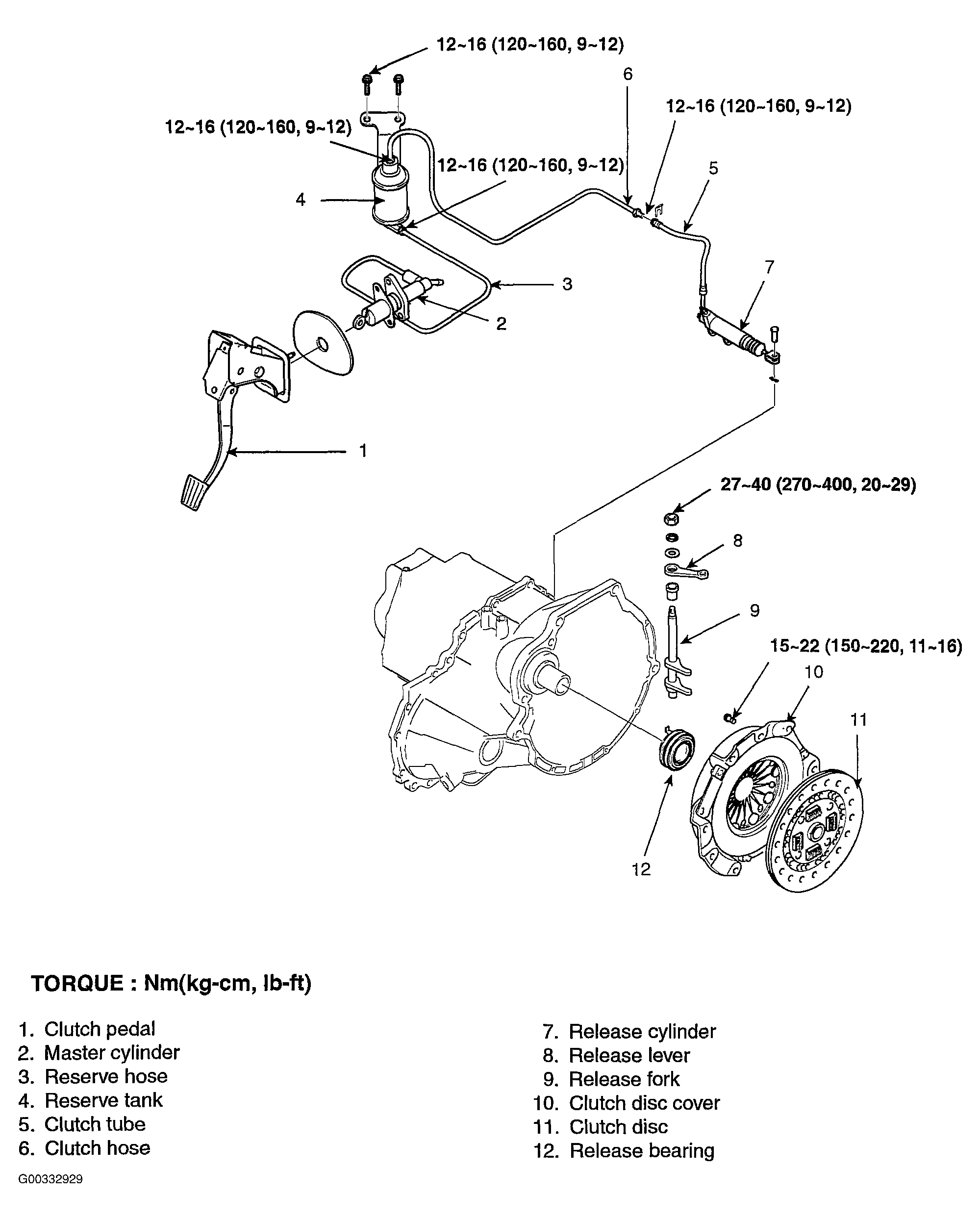

Fig 2: Clutch System Components (2 Of 3)
G00332929Courtesy of KIA MOTORS AMERICA, INC.

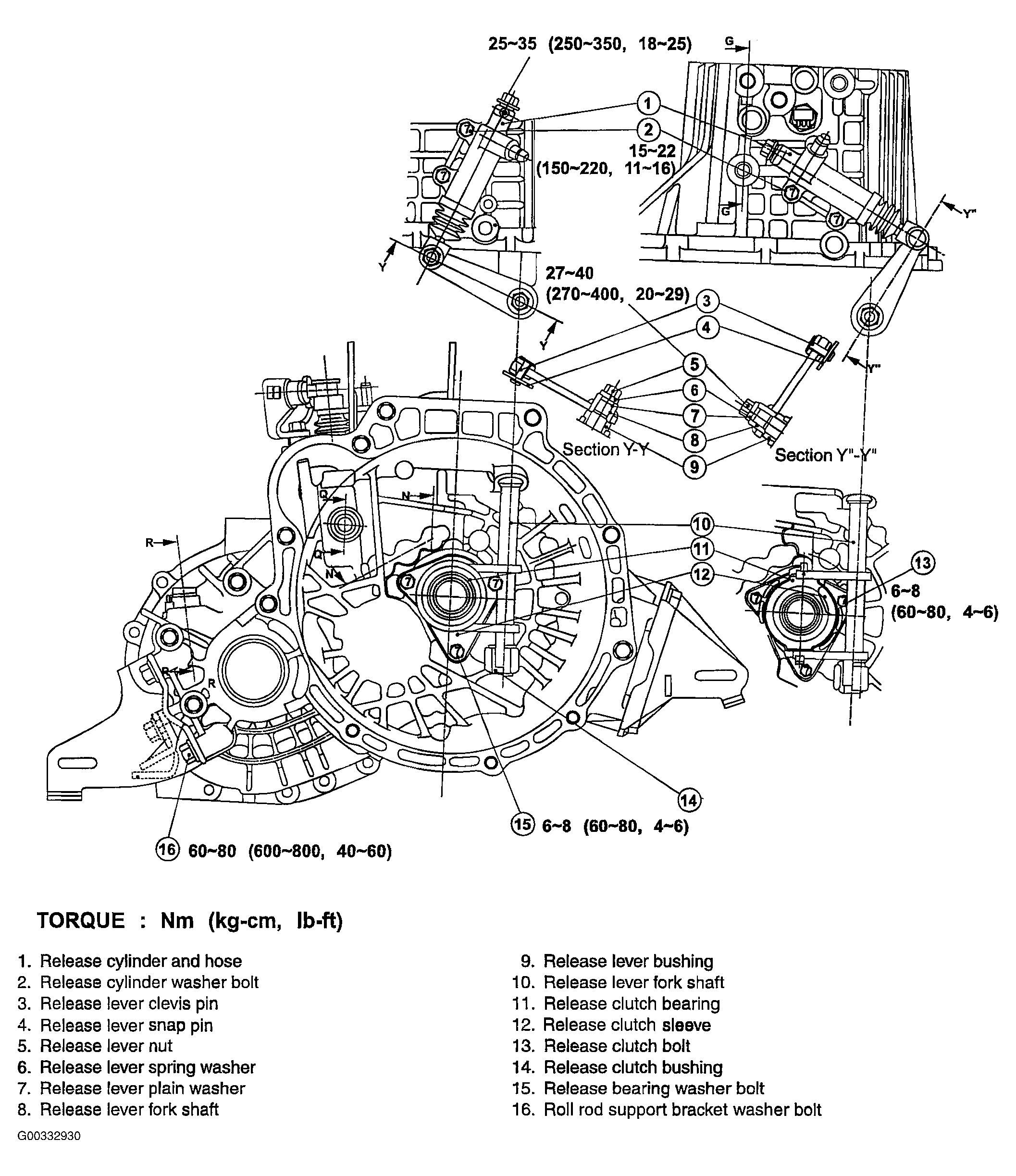

Fig 3: Clutch System Components (3 Of 3)
G00332930Courtesy of KIA MOTORS AMERICA, INC.
