Input Shaft: Components

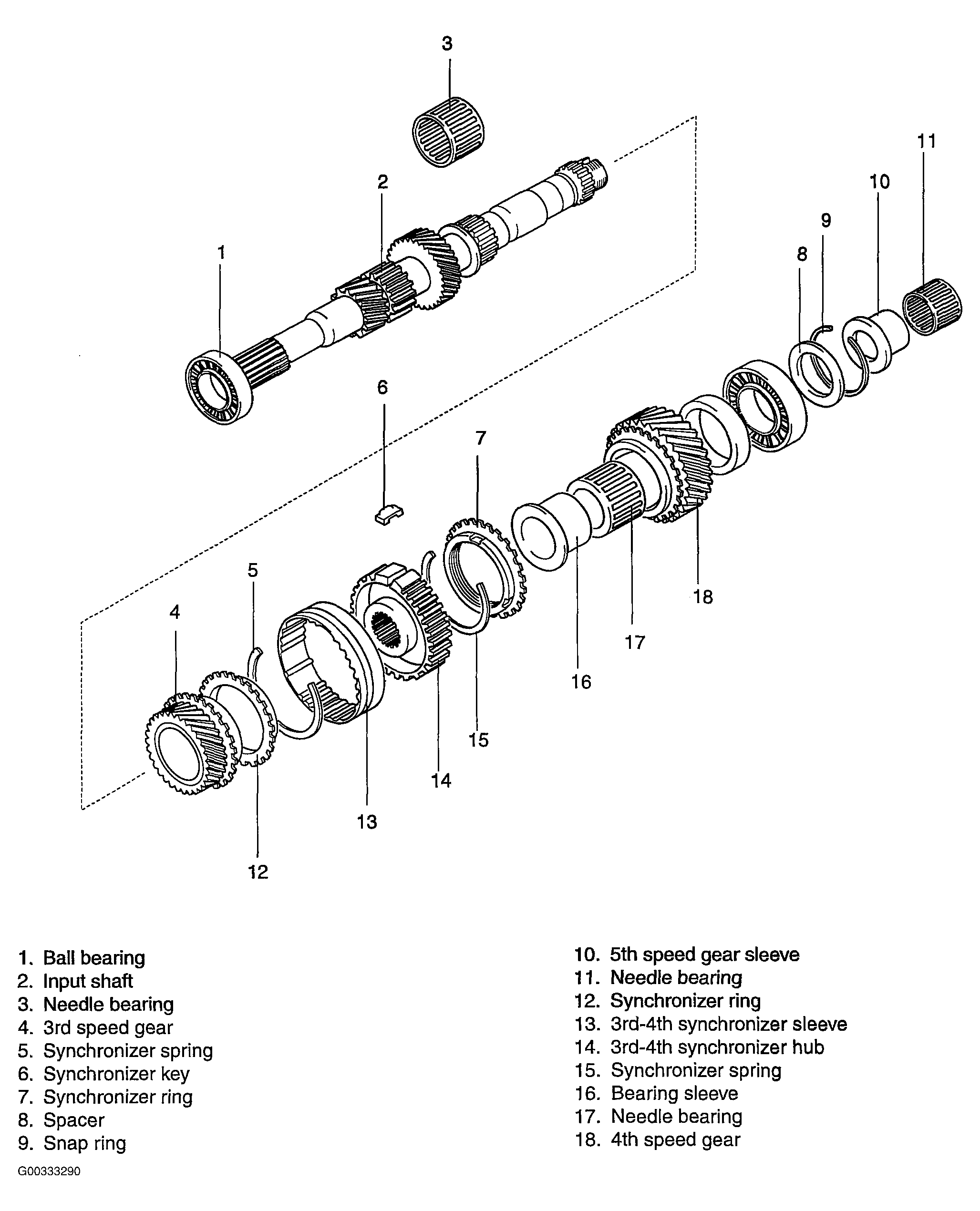

Fig 1: Exploded View Of Input Shaft Components
G00333290Courtesy of KIA MOTORS AMERICA, INC.
