Home › Kia › 2007 › Spectra5 2.0 1, Standard › Repair and Diagnosis › Transmission › Manual Trans › Overhaul › Manual Transaxle System › Output Shaft › Components

Output Shaft: Components

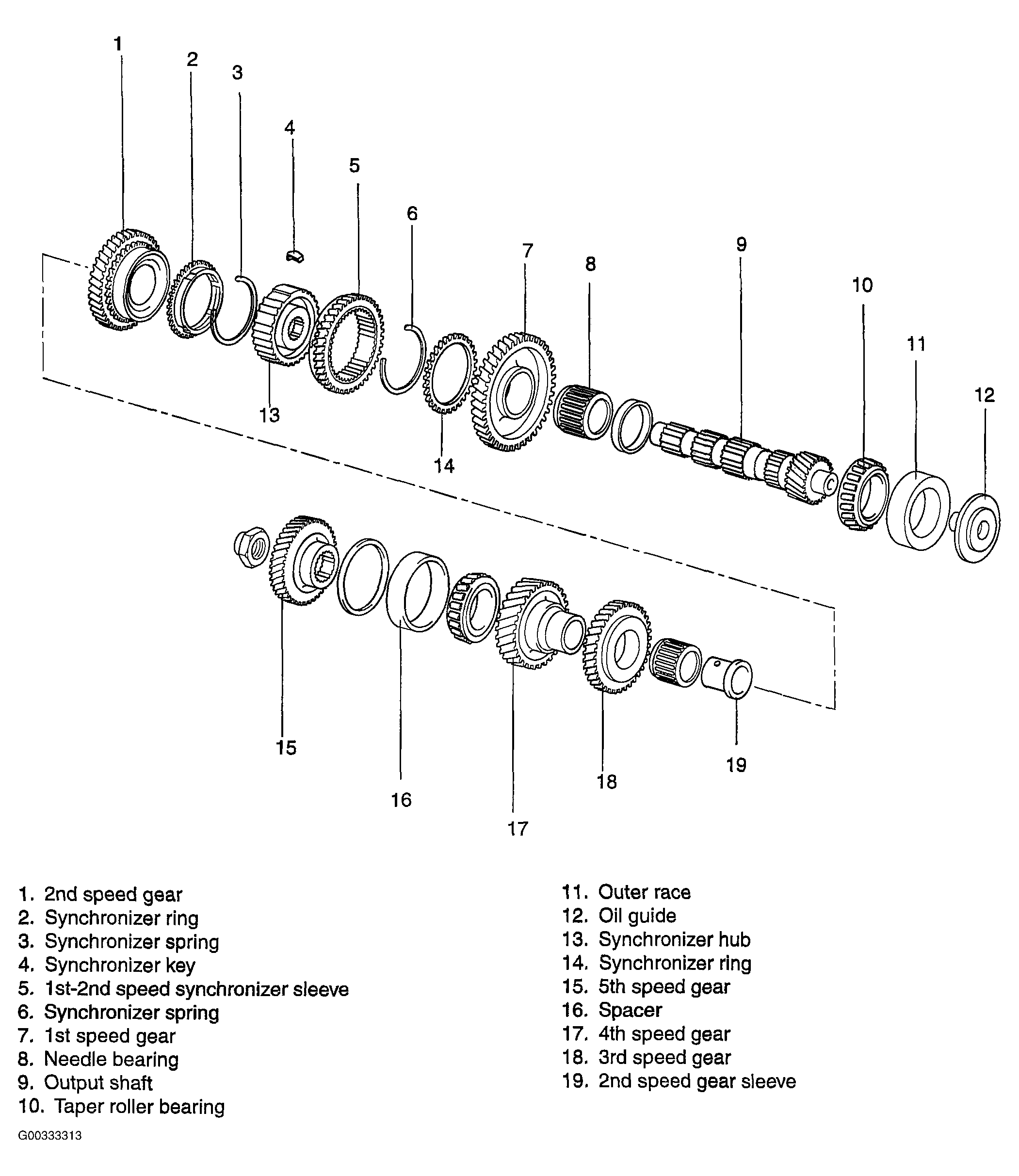

Fig 1: Exploded View Of Output Shaft Components
G00333313Courtesy of KIA MOTORS AMERICA, INC.
