Home › Kia › 2007 › Spectra5 2.0 1, Standard › Repair and Diagnosis › Transmission › Manual Trans › Overhaul › Manual Transaxle System › Shift Forks › Components

Shift Forks: Components

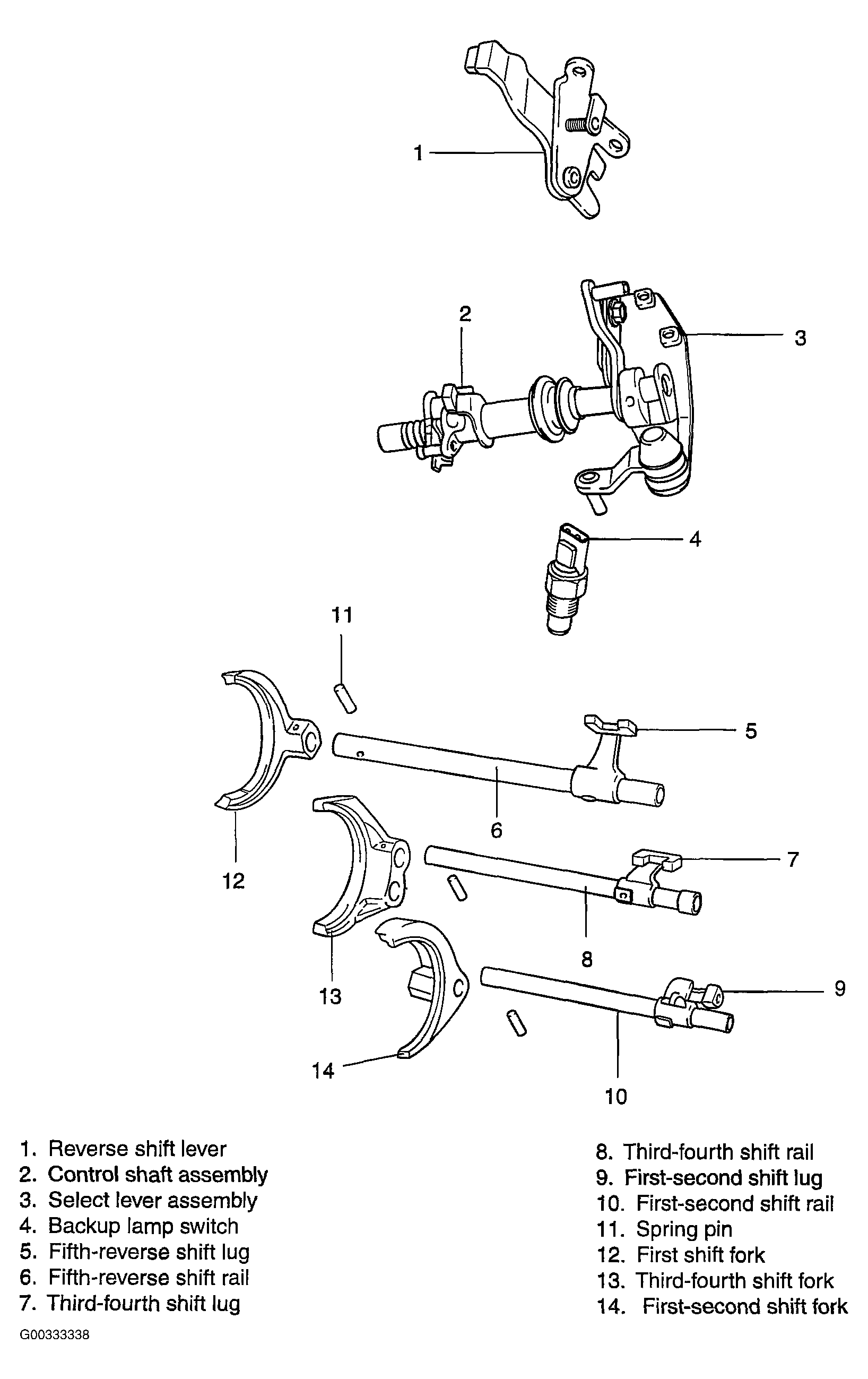

Fig 1: Exploded View Of Shift Forks
G00333338Courtesy of KIA MOTORS AMERICA, INC.
