Automatic Transaxle: Components

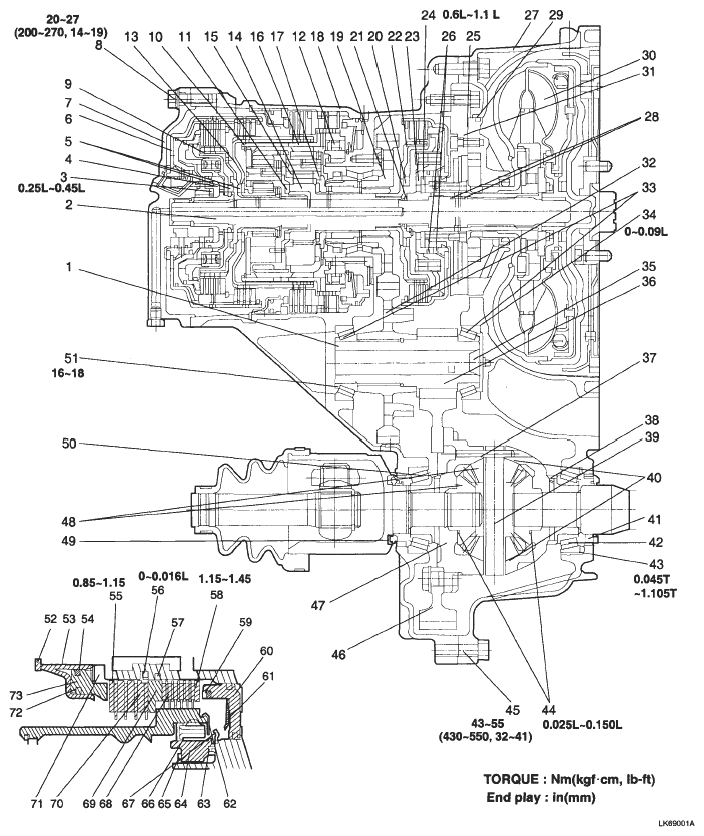

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

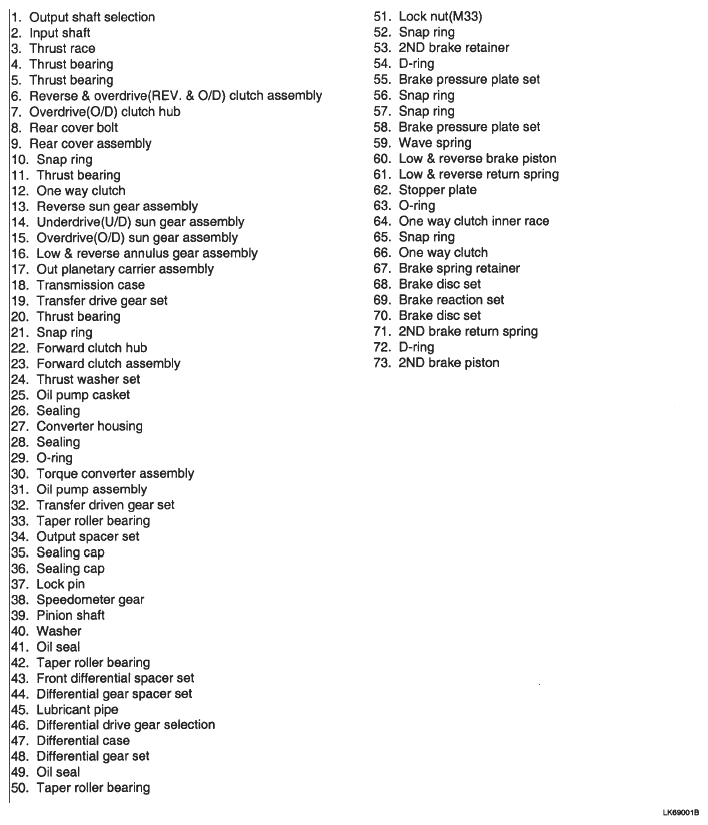

Fig 2: Automatic Transaxle Components Legends

Courtesy of KIA MOTORS AMERICA, INC.

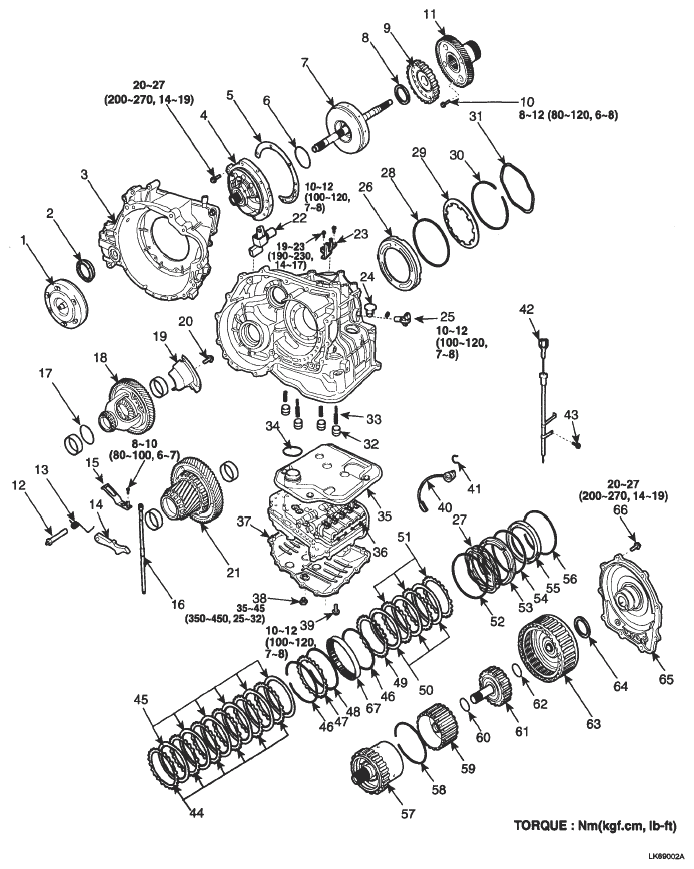

Fig 3: Exploded View Of Automatic Transaxle Components

Courtesy of KIA MOTORS AMERICA, INC.

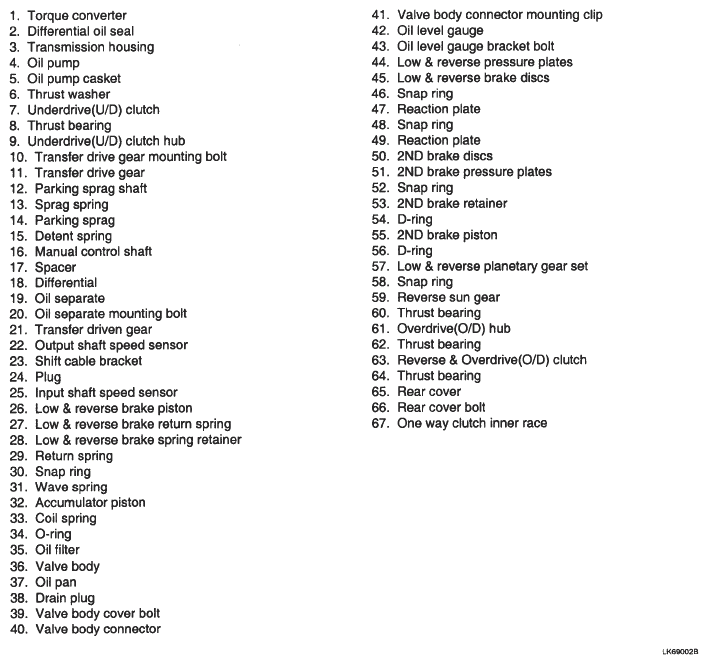

Fig 4: Automatic Transaxle Components Legends

Courtesy of KIA MOTORS AMERICA, INC.
