Automatic Transaxle System: Differential: Components

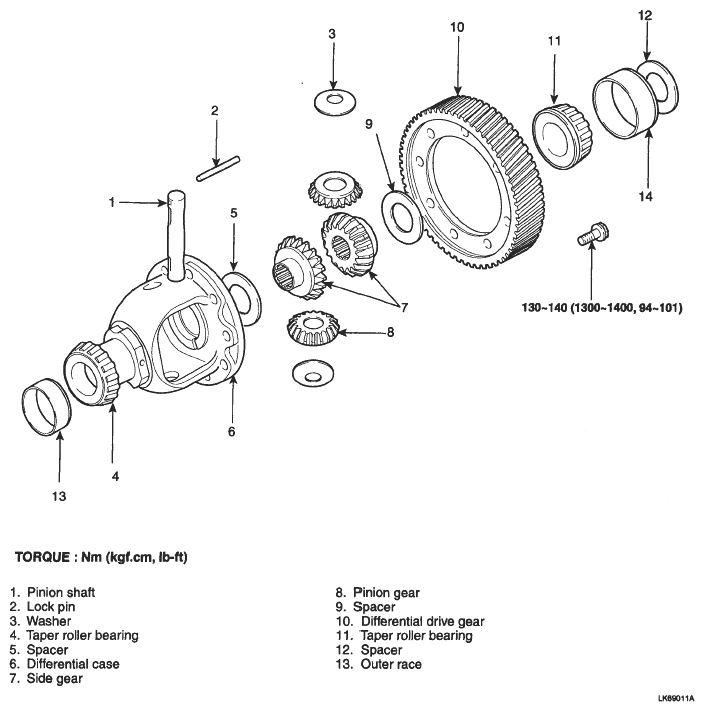

Fig 1: Differential Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
