Specifications & Overhaul - A4CF2
›
Automatic Transaxle System
›
Planetary Gear Set
›
Components
Planetary Gear Set: Components

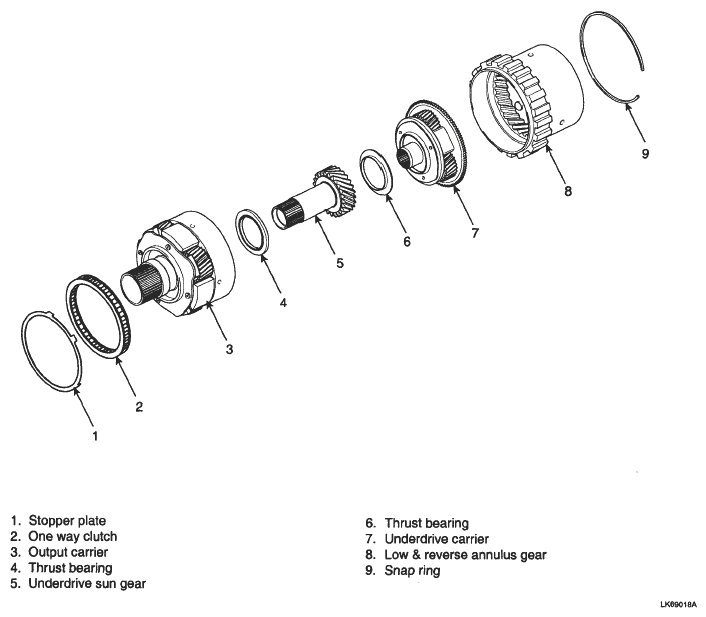

Fig 1: Identifying Planetary Gear Set Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
