HECU (Hydraulic And Electronic Control Unit): Components

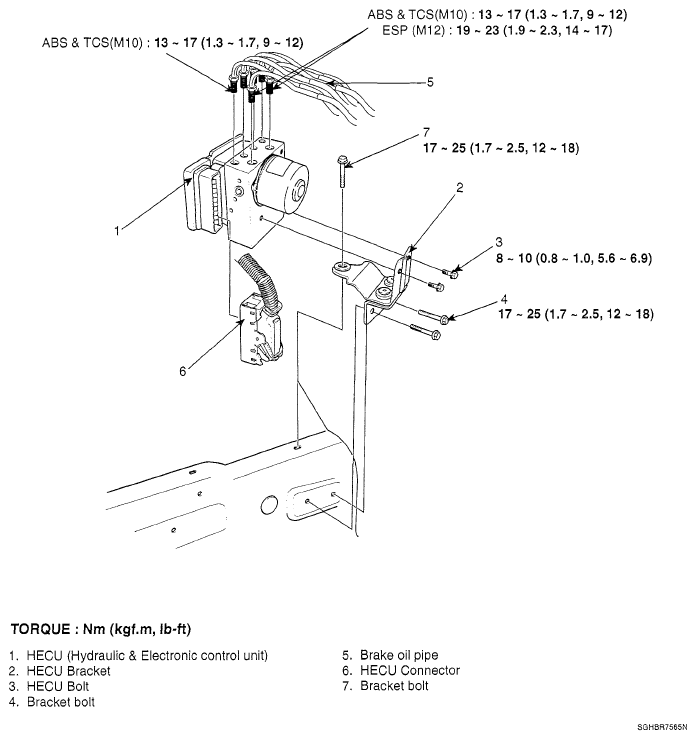

Fig 1: Hydraulic And Electronic Control Unit Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
