Components Location

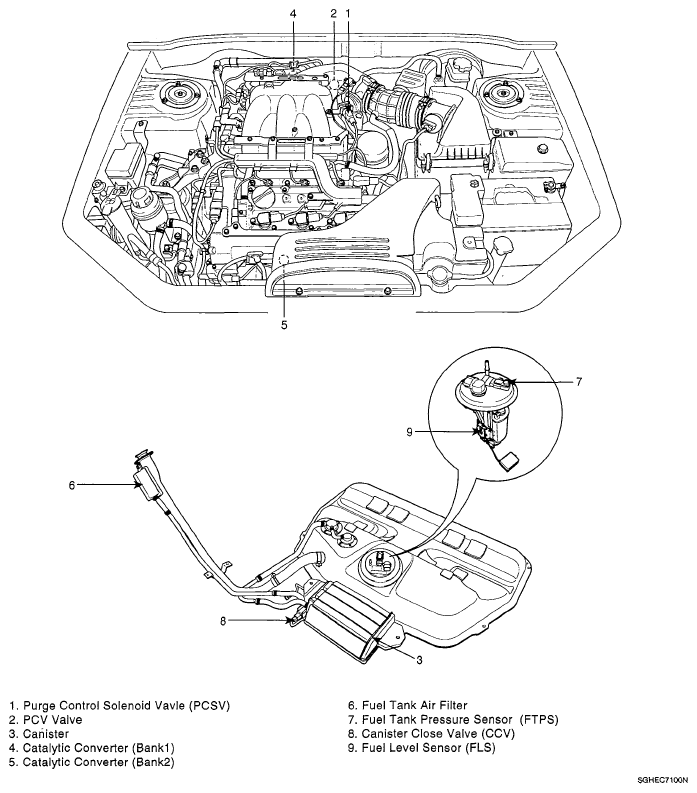

Fig 1: Identifying Emission Control System Components
G05116302Courtesy of KIA MOTORS AMERICA, INC.

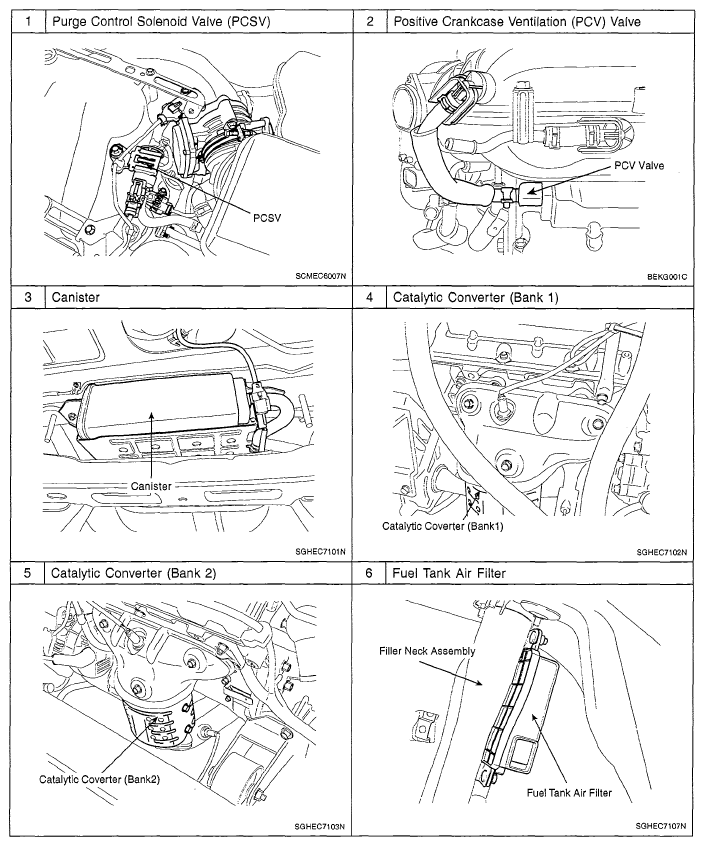

Fig 2: Identifying Emission Control System Components
G05116303Courtesy of KIA MOTORS AMERICA, INC.

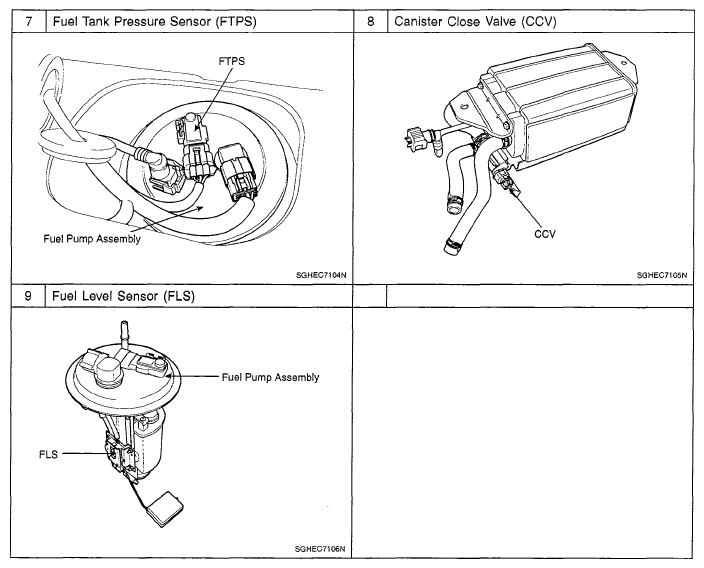

Fig 3: Identifying Emission Control System Components
G05116304Courtesy of KIA MOTORS AMERICA, INC.
