Component Inspection

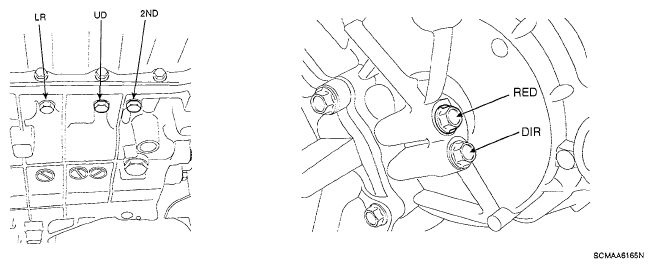

Fig 1: Identifying Input & Output Speed Sensor

Courtesy of KIA MOTORS AMERICA, INC.

Connect oil pressure gauge to "UD" and "2ND" and "RED" port.
Engine "ON".
Drive a car with gear position 2 in "SPORTS MODE".
Compare it with reference data as below.
Specification: refer to Standard Oil Pressure Table (Refer to DTC P0731 )
Is oil pressure value within specifications?
YES
- Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
