DTC P1674 Transponder Status Error
›
Schematic Diagram
Schematic Diagram

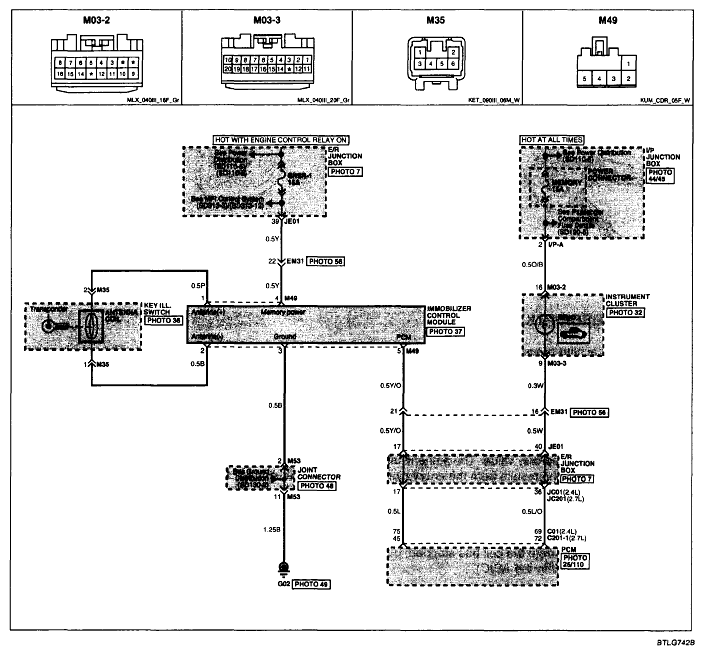

Fig 1: Immobilizer Control Module Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
