Heater Control Unit Replacement

Remove the CENTER FASCIA PANEL .
Loosen the heater control mounting screw, remove the heater control unit (A).

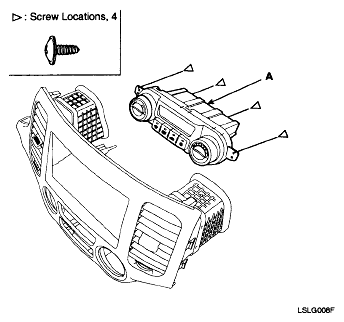

Fig 1: Identifying Heater Control Unit
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
