Circuit Diagram
›
Assist Power Window Switch
Assist Power Window Switch

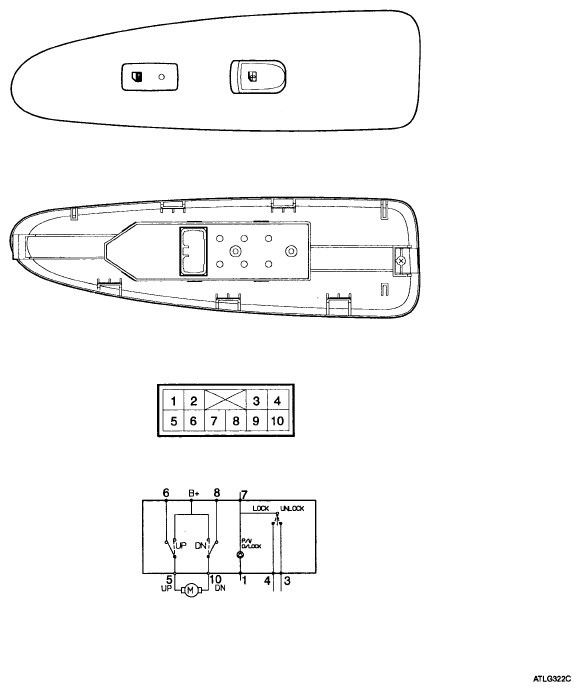

Fig 1: Assist Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
