Engine Control System - Fuel System (G4KC-GSL 2.4L)
›
Component Location
Component Location

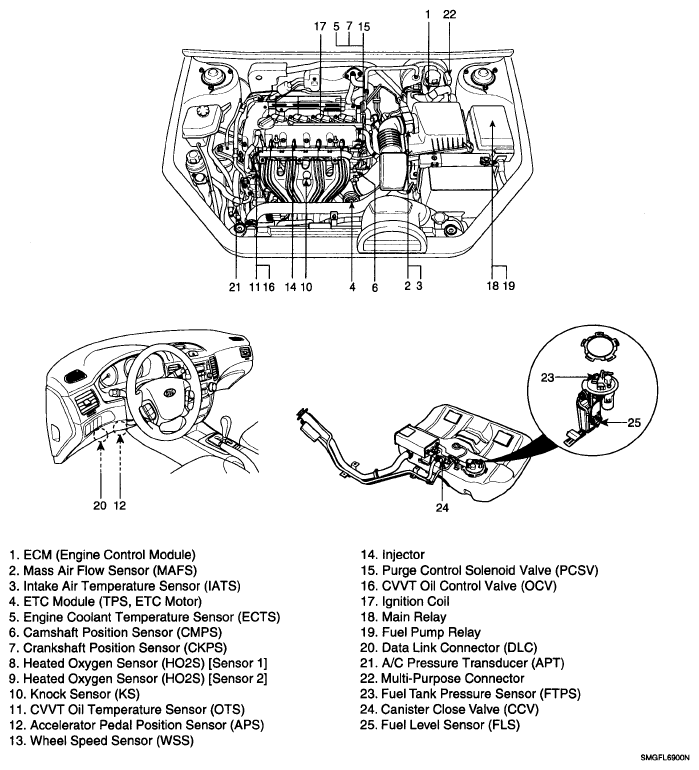

Fig 1: Locating Engine Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

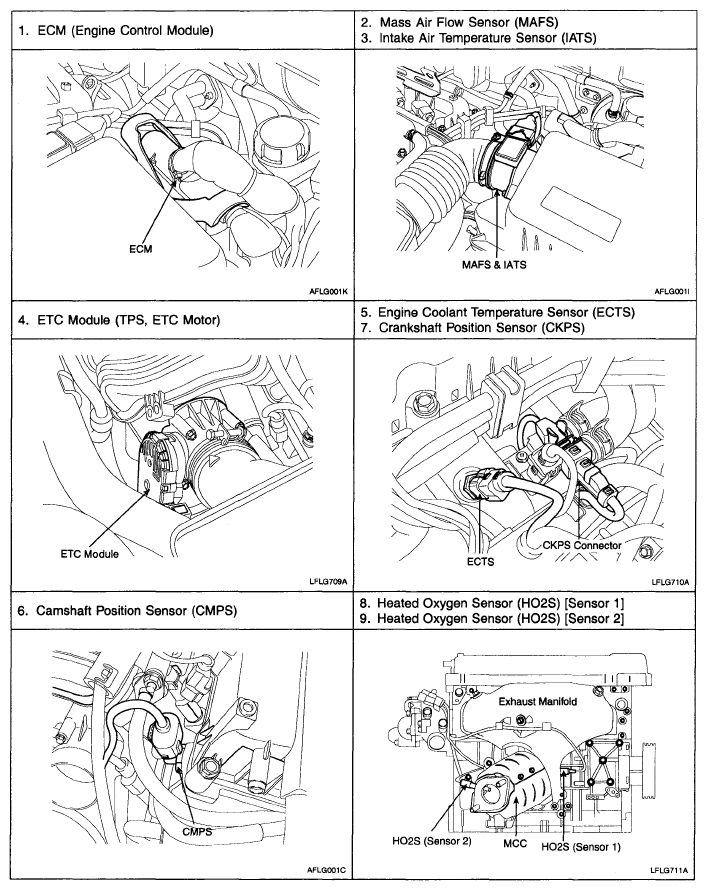

Fig 2: Locating Engine Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

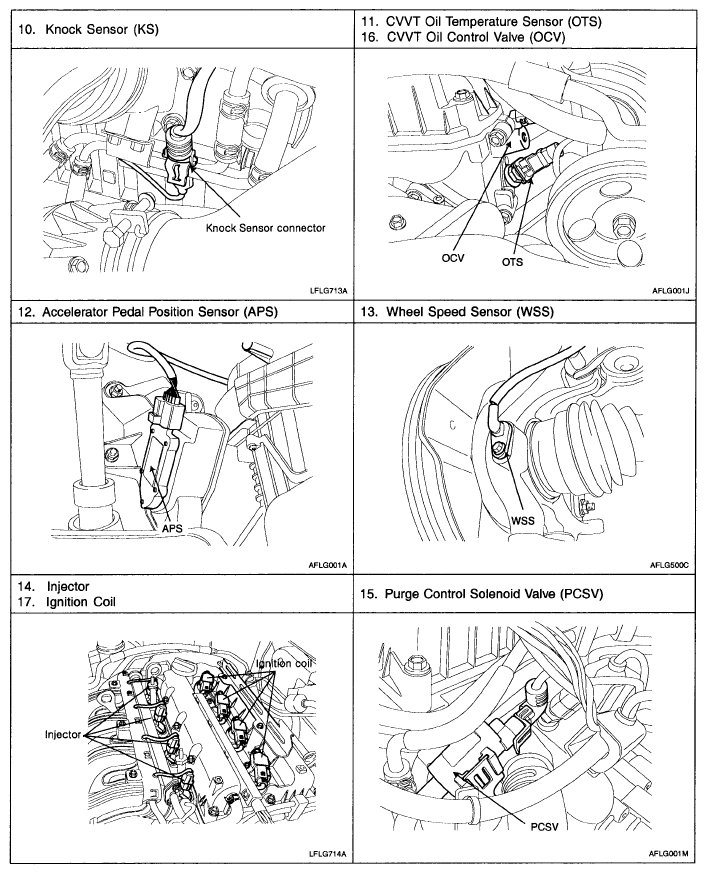

Fig 3: Locating Engine Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

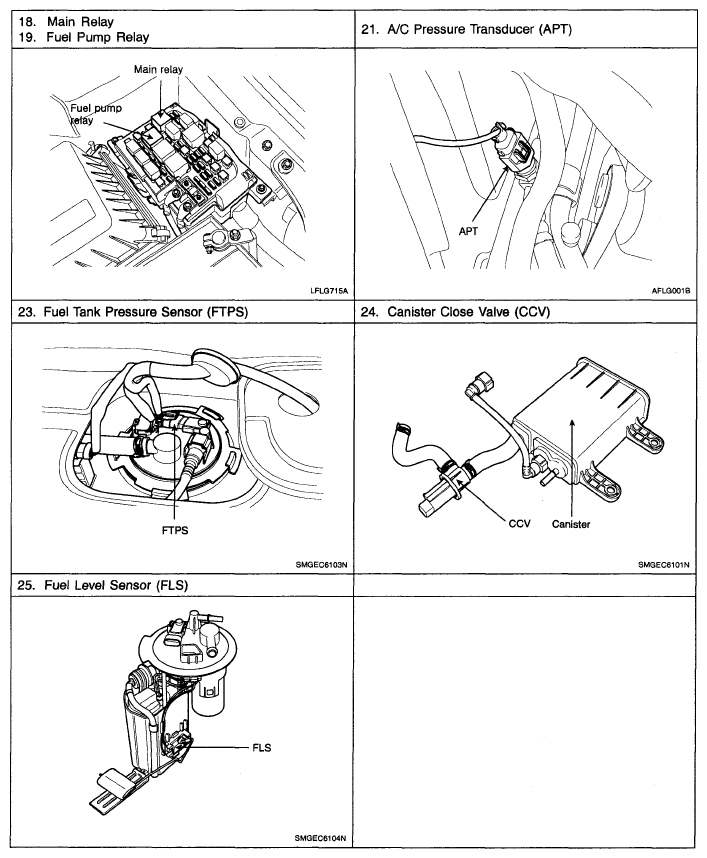

Fig 4: Locating Engine Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
