Engine Control System - Fuel System (G4KC-GSL 2.4L)
›
Engine Control Module (ECM)
›
Circuit Diagram
Circuit Diagram

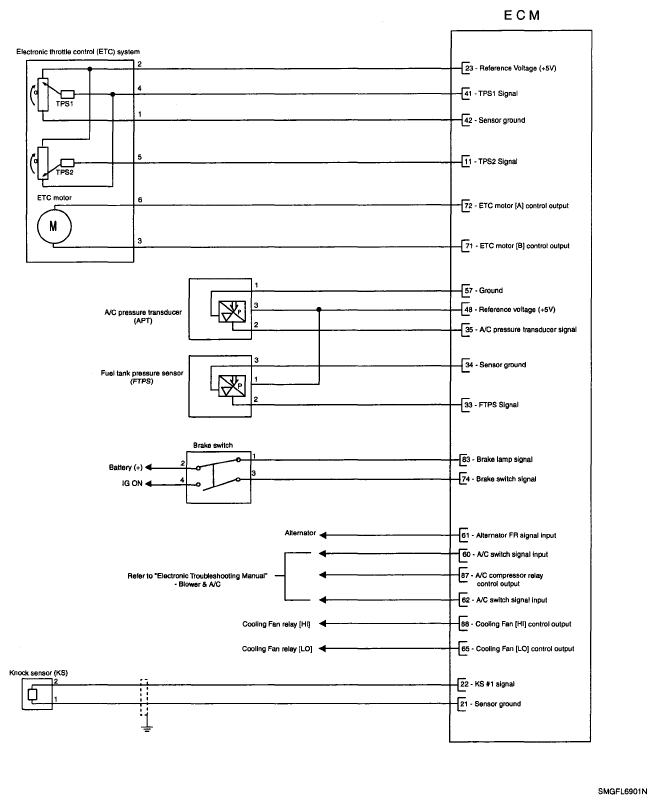

Fig 1: ECM Circuit Diagram (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

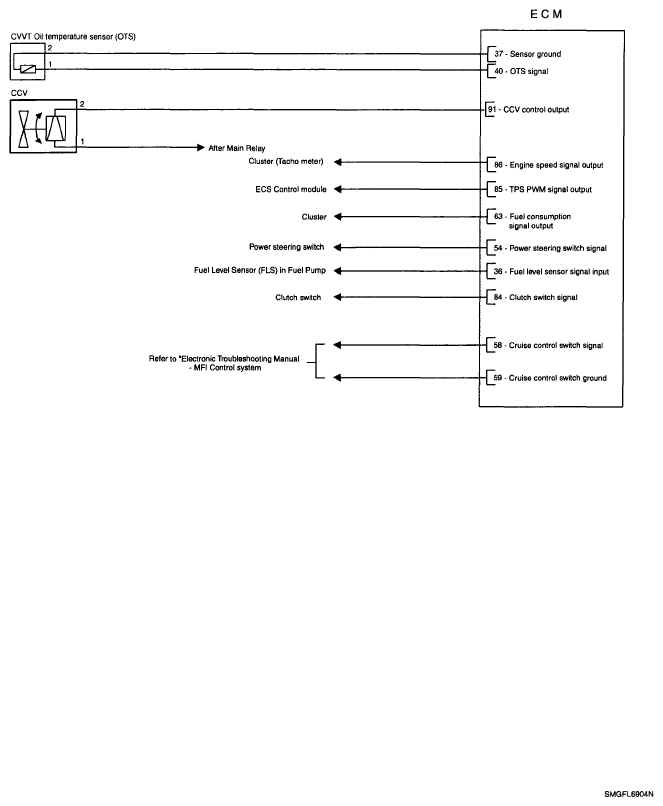

Fig 2: ECM Circuit Diagram (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

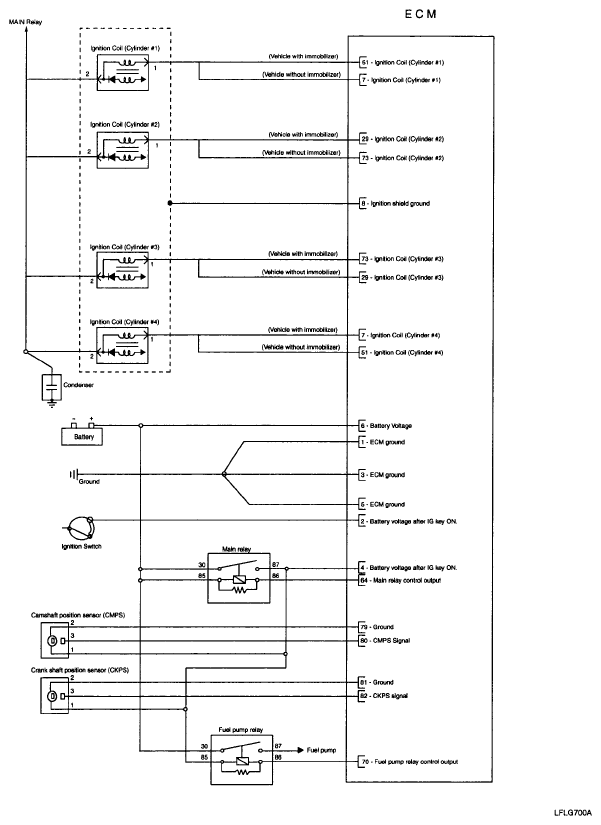

Fig 3: ECM Circuit Diagram (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

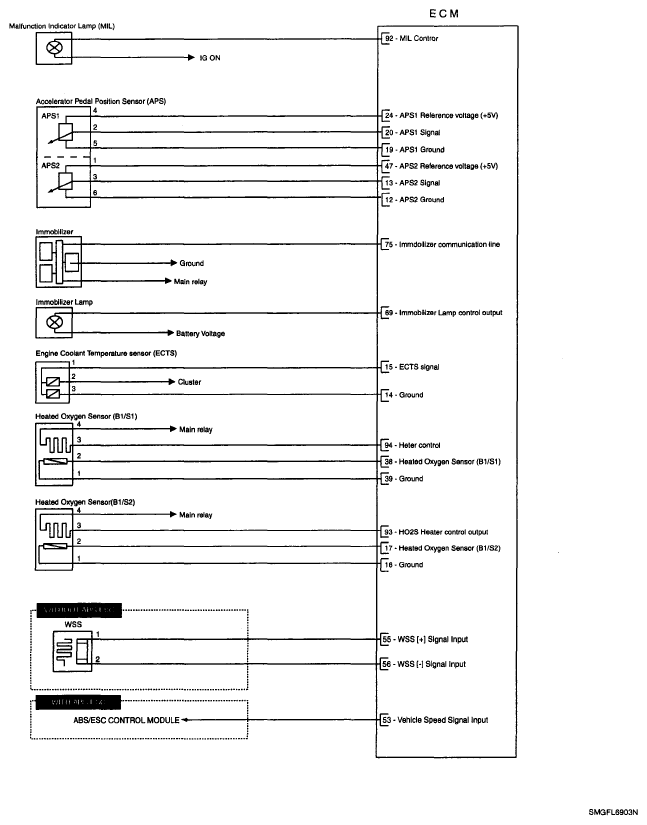

Fig 4: ECM Circuit Diagram (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

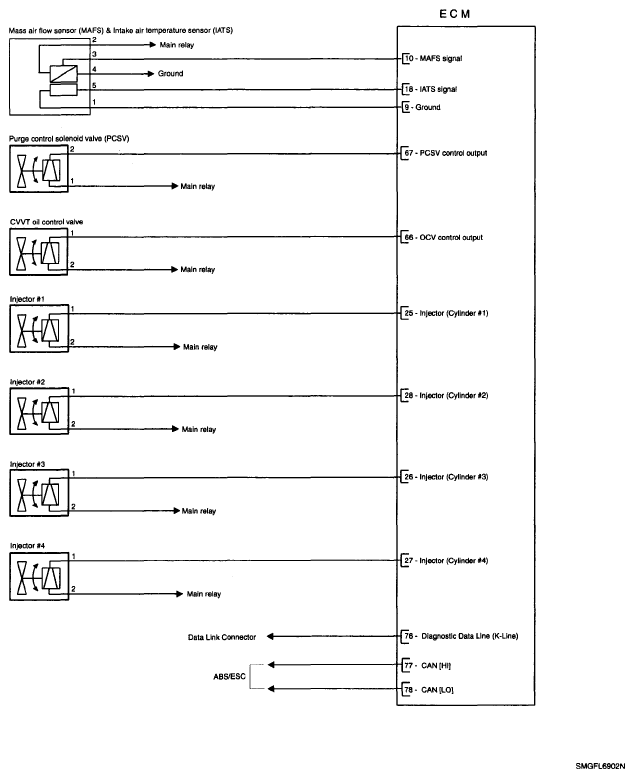

Fig 5: ECM Circuit Diagram (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
