Engine Control Module (ECM): Removal

  1. Turn the ignition switch off and disconnect the battery (-) terminal.
  2. Disconnect the ECM connector (A).
  3. Unscrew 4 mounting bolts behind the air cleaner.
  4. Remove the ECM.

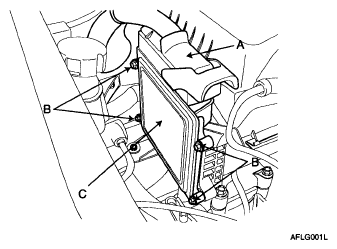

    Fig 1: Locating ECM Behind Air Cleaner
    G04804213Courtesy of KIA MOTORS AMERICA, INC.
