Engine Control System - Fuel System (G4KC-GSL 2.4L)
›
Etc (Electronic Throttle Control) System
›
Circuit Diagram
Circuit Diagram

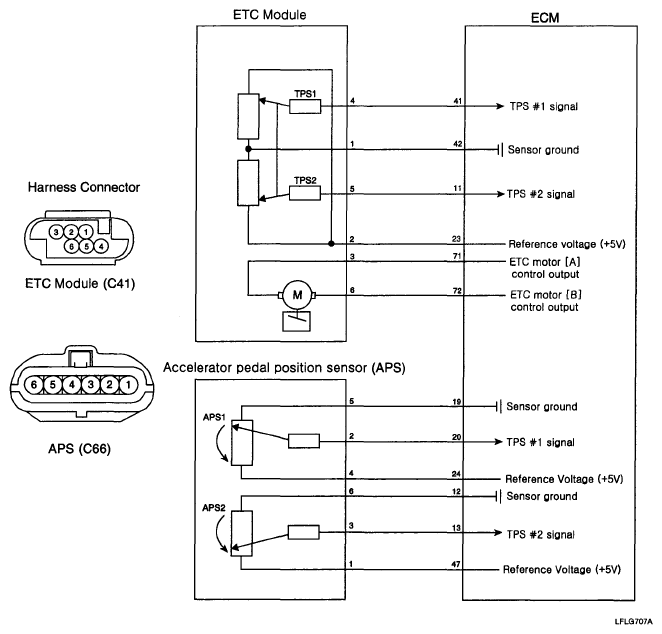

Fig 1: ECM-To-ETC Module And APS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
