Section 18 (Brake System)
›
Master Cylinder
›
Components
Master Cylinder: Components
WARNING:
This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

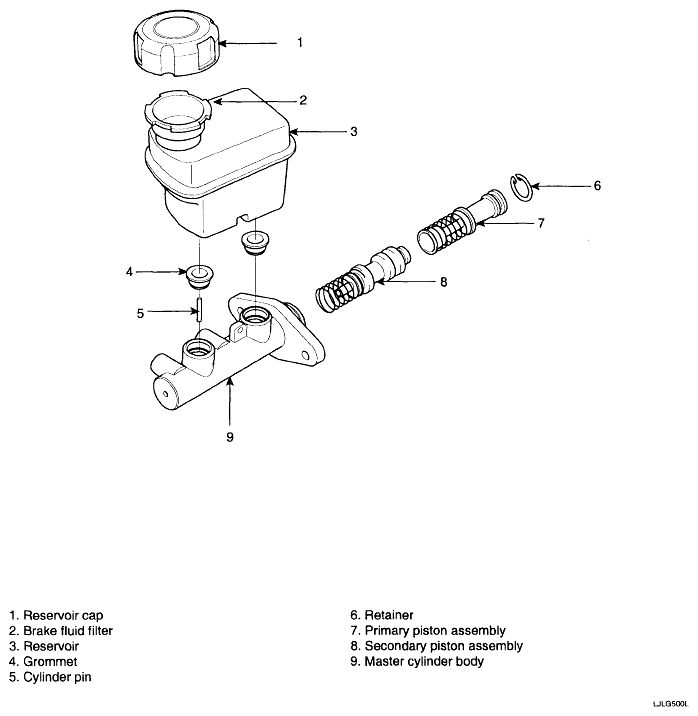

Fig 1: Identifying Master Cylinder Components
Courtesy of KIA MOTORS AMERICA, INC.
