Engine Control System - Fuel System (G6EA-GSL 2.7L)
›
Component Location
Component Location

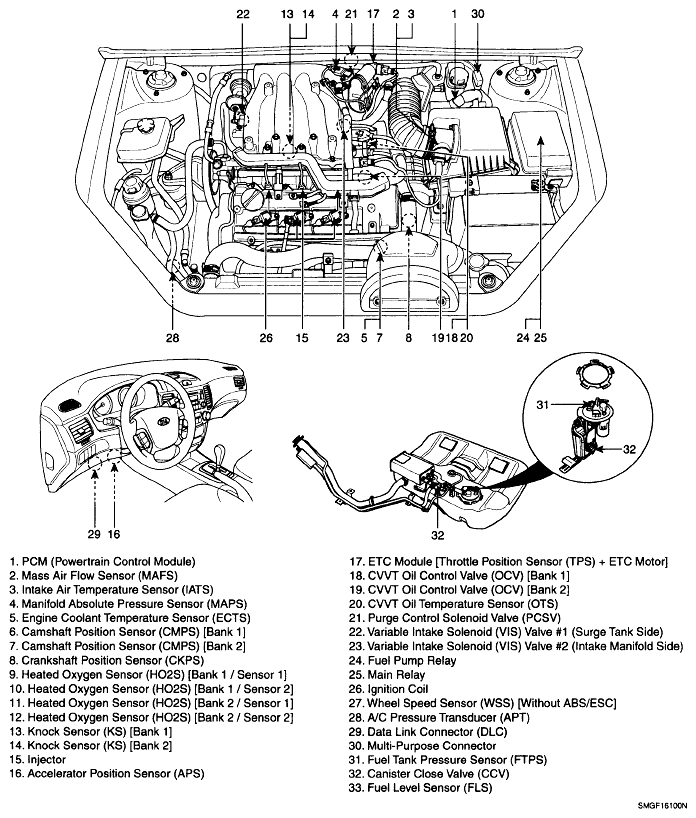

Fig 1: Locating Engine Components (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

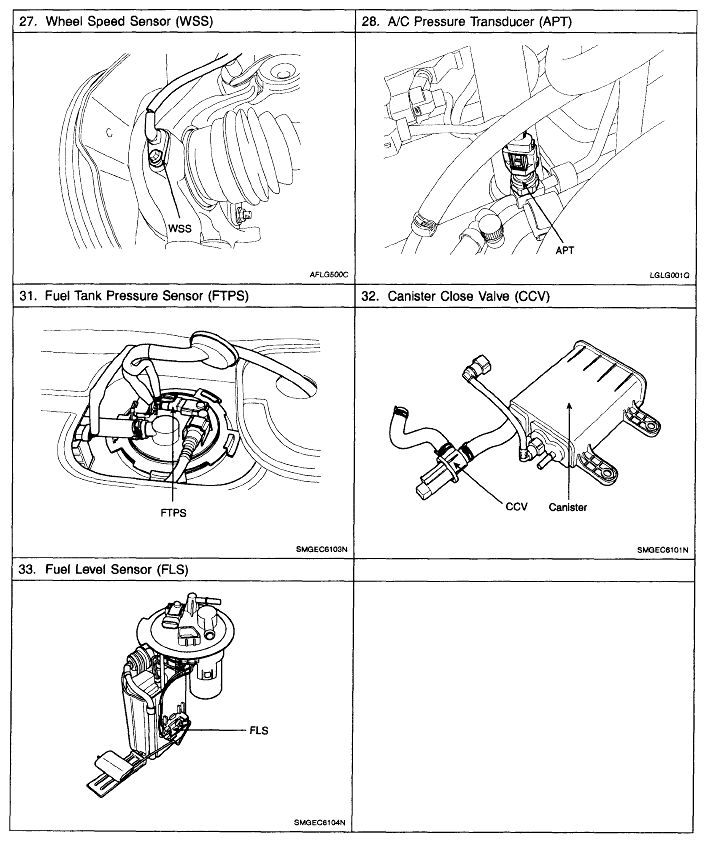

Fig 2: Locating Engine Components (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

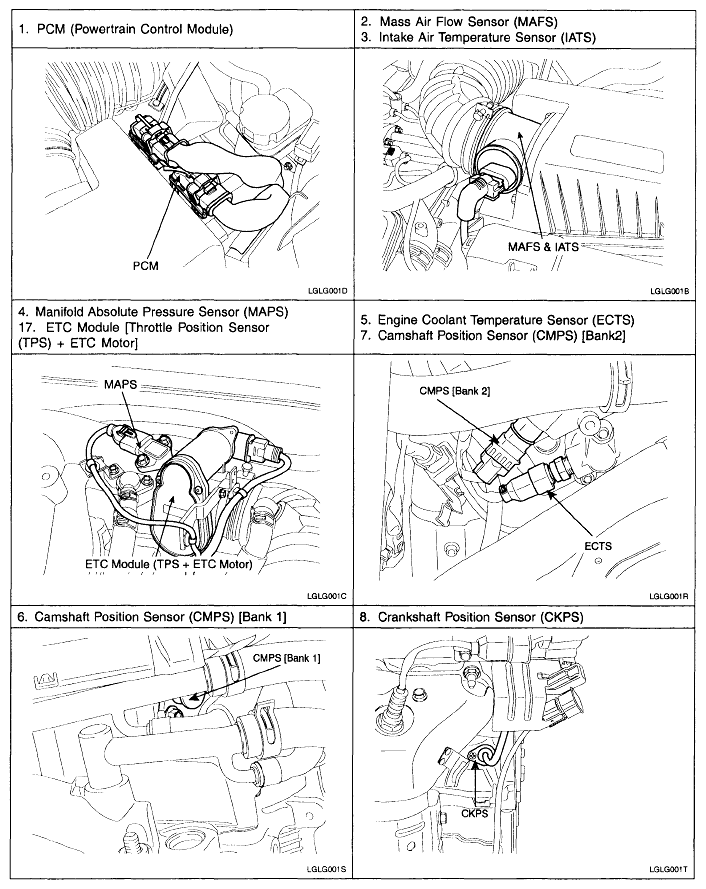

Fig 3: Locating Engine Components (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

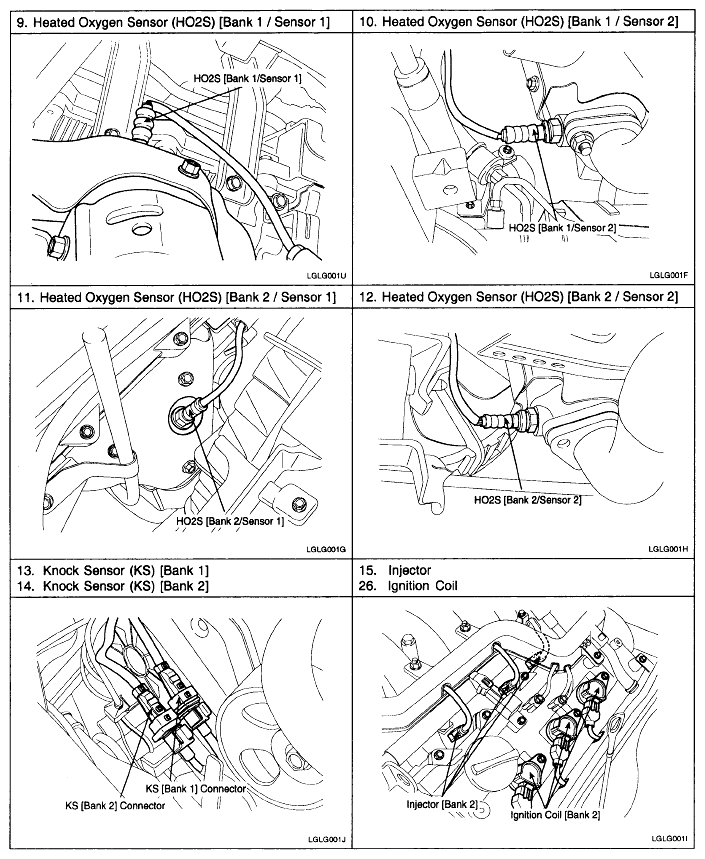

Fig 4: Locating Engine Components (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

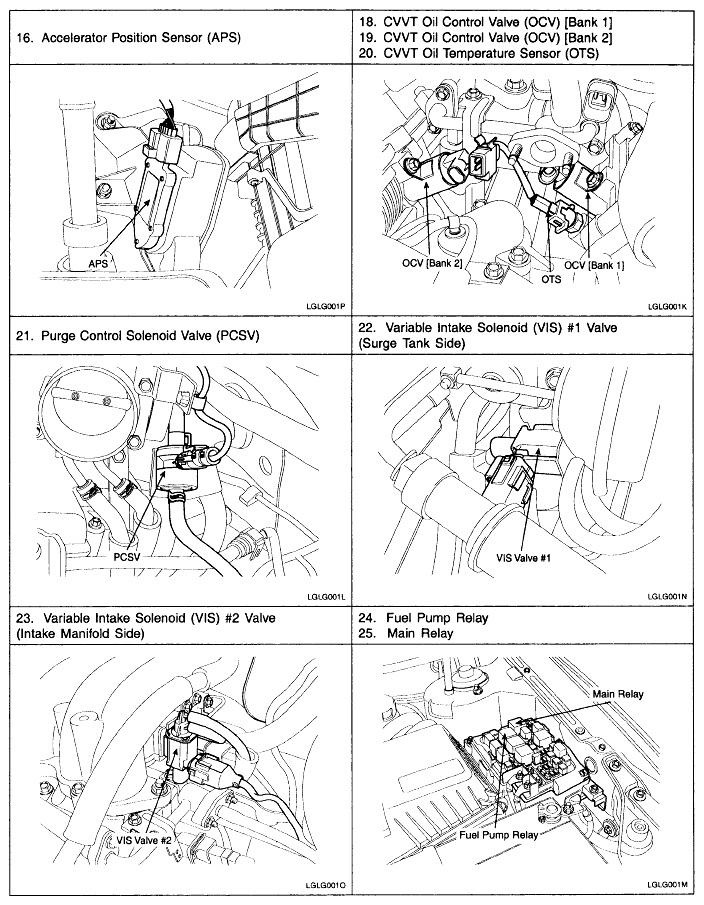

Fig 5: Locating Engine Components (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
