Engine Control System - Fuel System (G6EA-GSL 2.7L)
›
Crankshaft Position Sensor (CKPS)
›
Inspection
›
Wave Form
Wave Form
Fig 1: Identifying Crankshaft Position Sensor
Courtesy of KIA MOTORS AMERICA, INC.

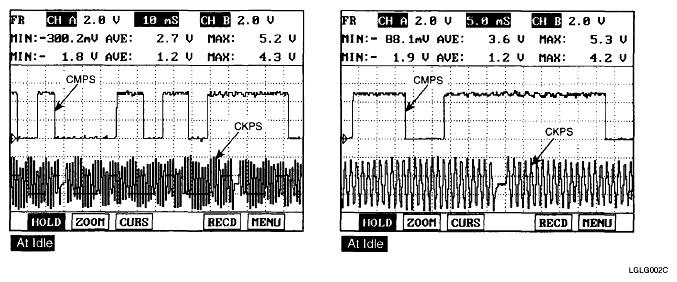

Fig 2: Wave Form Graphs
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
