Engine Control System - Fuel System (G6EA-GSL 2.7L)
›
Engine Coolant Temperature Sensor (ECTS)
›
Inspection
›
Circuit Diagram
Circuit Diagram

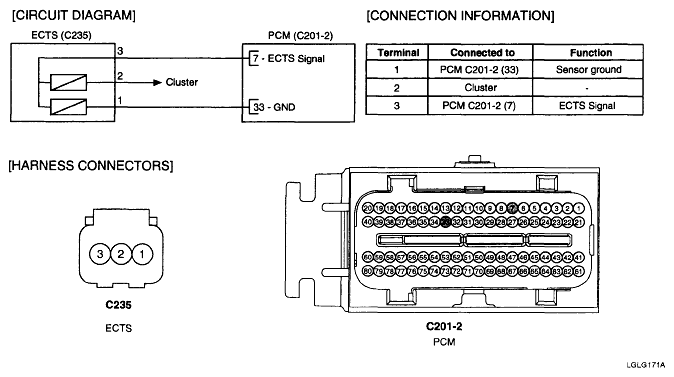

Fig 1: Engine Coolant Temperature Sensor - Circuit Diagram
