Kia
›
2008
›
Magentis 2.7 4
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - Fuel System (G6EA-GSL 2.7L)
›
Manifold Absolute Pressure Sensor (Maps)
›
Inspection
›
Circuit Diagram
Circuit Diagram

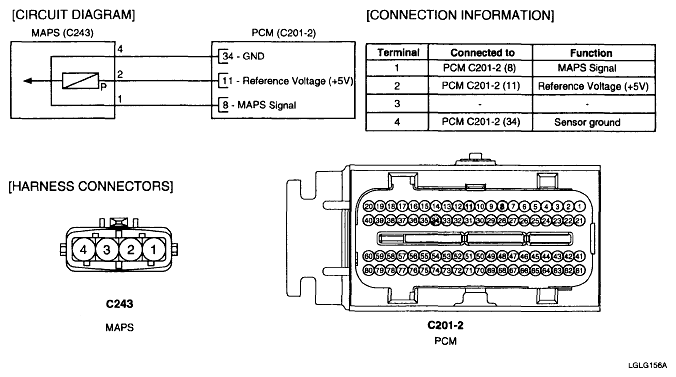

Fig 1: Manifold Absolute Pressure Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
