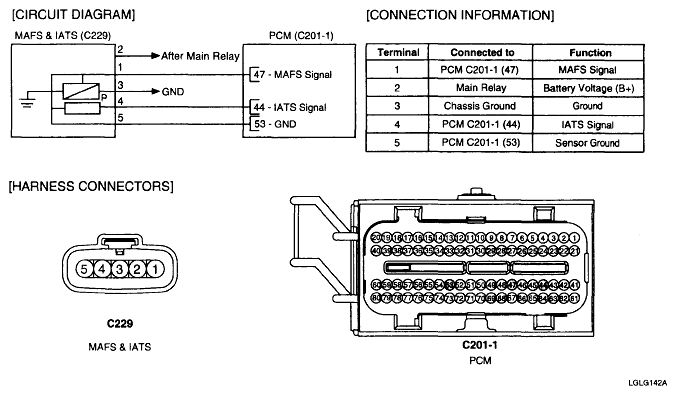

Home › Kia › 2008 › Magentis 2.7 4 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - Fuel System (G6EA-GSL 2.7L) › Mass Air Flow Sensor (MAFS) › Inspection › Circuit Diagram
