Engine Control System - Fuel System (G6EA-GSL 2.7L)
›
Powertrain Control Module (Pcm)
›
Circuit Diagram
Circuit Diagram

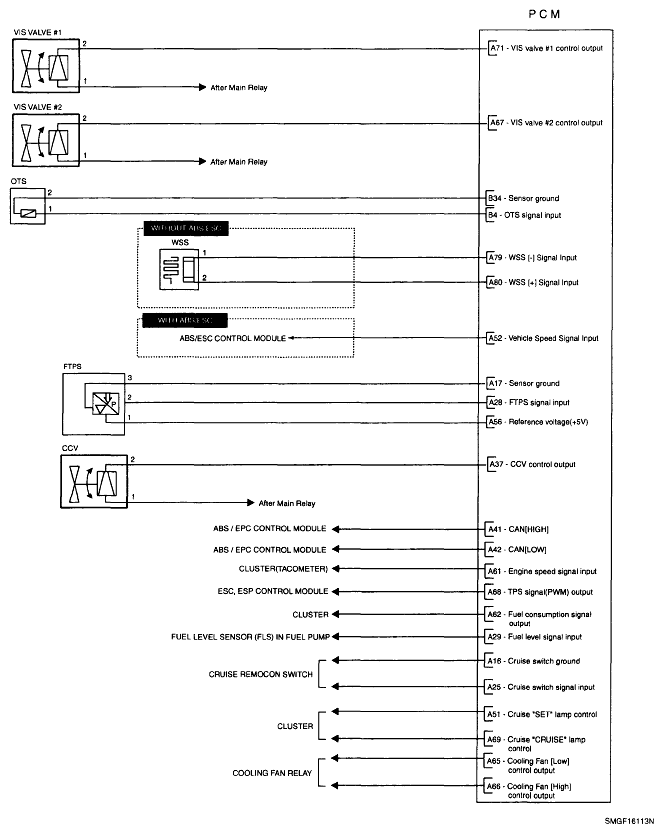

Fig 1: PCM - Circuit Diagram (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

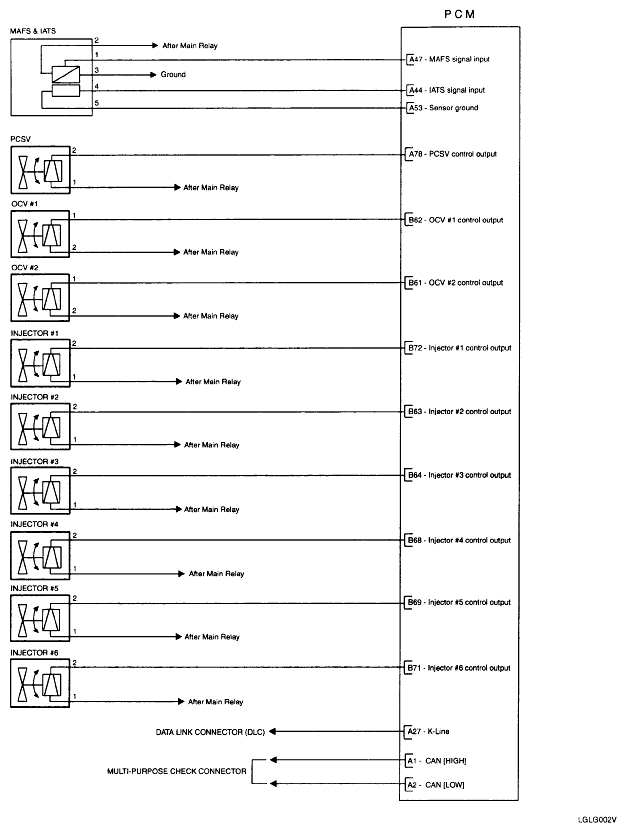

Fig 2: PCM - Circuit Diagram (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

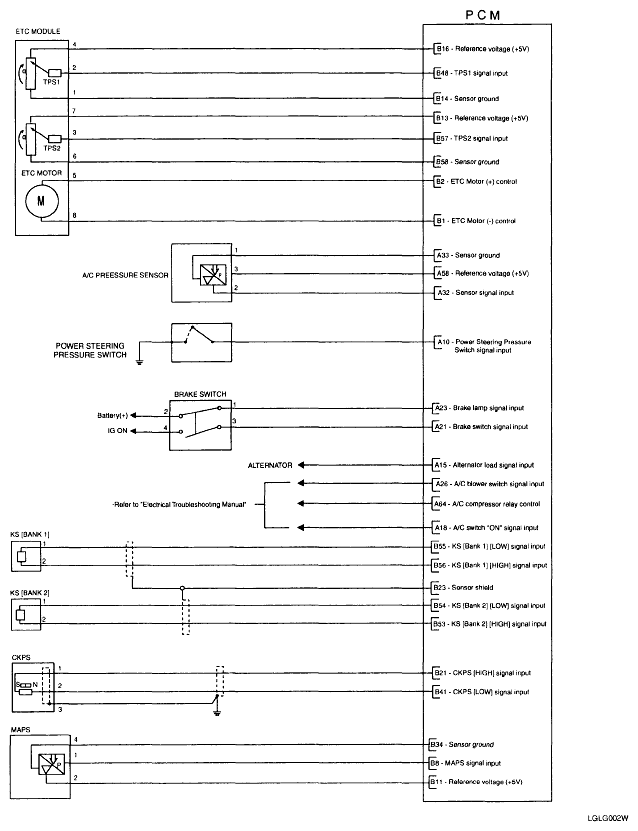

Fig 3: PCM - Circuit Diagram (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

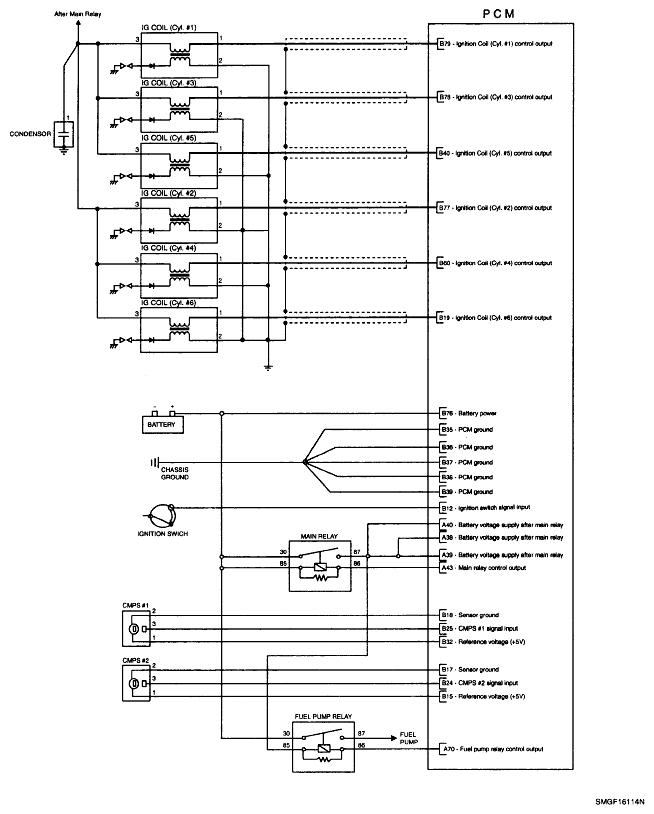

Fig 4: PCM - Circuit Diagram (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

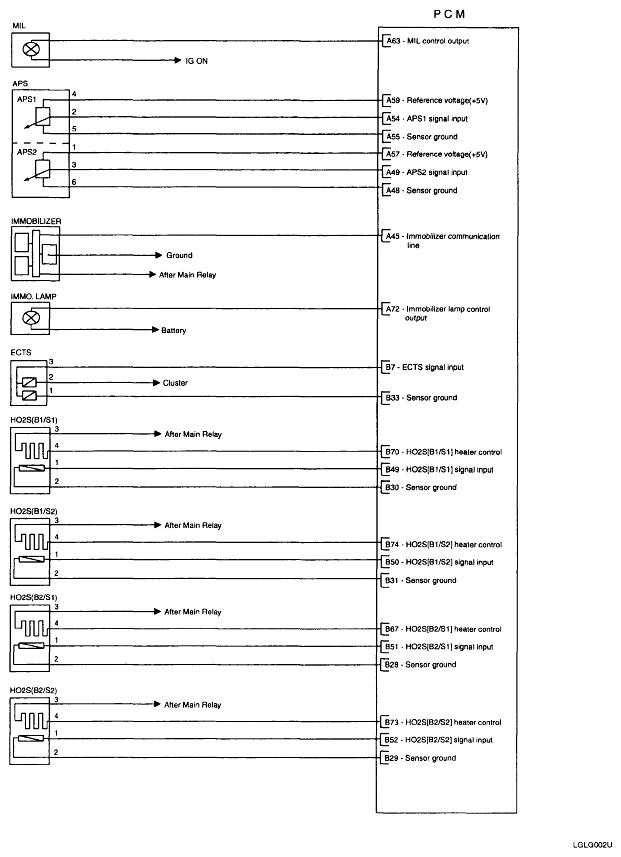

Fig 5: PCM - Circuit Diagram (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
