Power Window Switch
›
Circuit Diagram
›
Driver Power Window Switch
Driver Power Window Switch

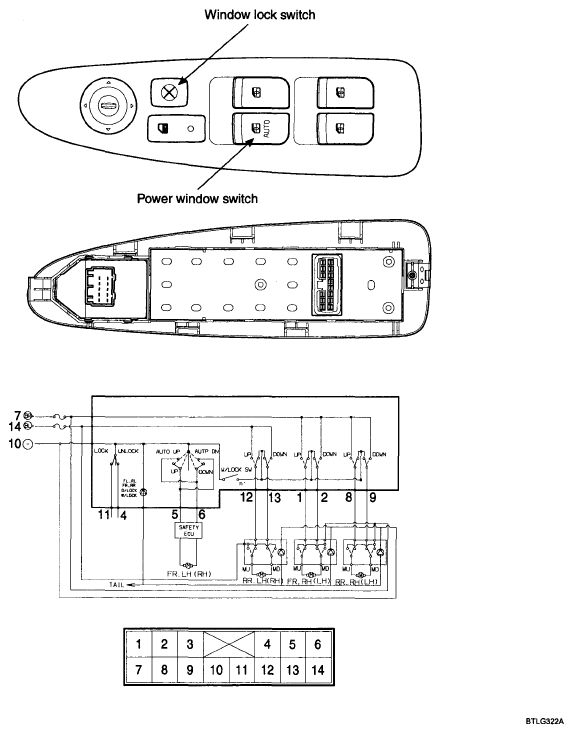

Fig 1: Driver Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
