Front Impact Sensor Connector End View
Front Impact Sensor Connector End View

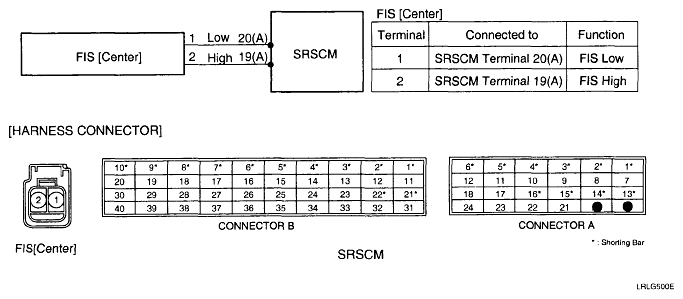

Fig 1: Front Impact Sensor Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
