Side Impact Sensor Connector End Views
Side Impact Sensor Connector End Views

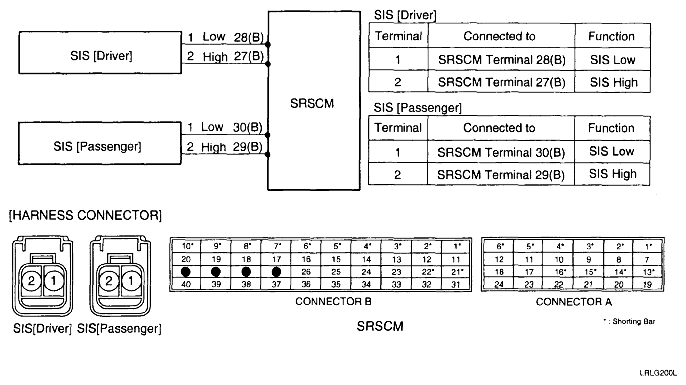

Fig 1: Side Impact Sensor Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
