Hi-Scan (Pro) Check
›
Standard Flow Of Diagnostic Troubleshooting
Standard Flow Of Diagnostic Troubleshooting

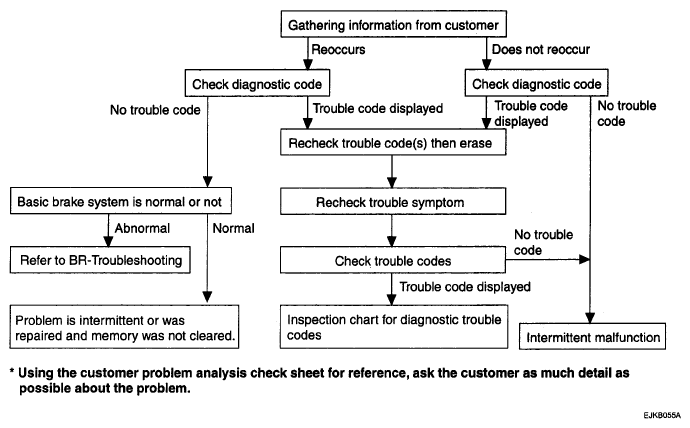

Fig 1: Diagnostic Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
