Brake Line: Removal

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake hose clip (A).

Fig 1: Identifying Brake Hose Clip
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the brake tube (A) nut holding the brake hose (B) nut with a wrench.

Fig 2: Loosening Brake Tube And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake hose (B).

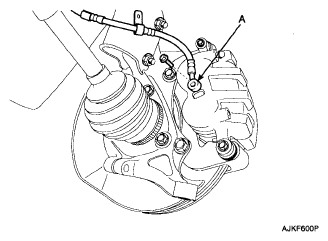

Remove the brake hose connecting bolt (A) from the caliper assembly.

Fig 3: Identifying Brake Hose Connecting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
