  1. Install the bushing (B) on the stabilizer bar (A).
    Fig 1: Identifying Stabilizer Bar, Bushing And Clamp
    G04805383Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).
  2. Install the bracket on the bushing (B).
  3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
  4. Install the stabilizer bar bracket mounting bolts (A) to the sub frame.

    Tightening torque N.m (kgf.m, lb-ft):

    39-60 (3.9-6.0, 28.2-43.4)

    Fig 2: Identifying Stabilizer Bar Assembly And Mounting Bolts
    G04882510Courtesy of KIA MOTORS AMERICA, INC.
  5. After lifting the jack which supports the sub frame, install the four bolts (A) of the sub frame and the eight bolts (B) of the guide bracket.

    Tightening torque N.m (kgf.m, lb-ft):

    Bolt (A): 160-180 (16-18, 115.7-130.2)

    Bolt (B): 45-60 (4.5-6.0, 32.5-43.4)

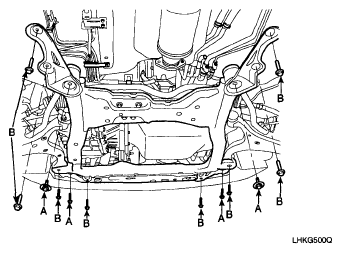

    Fig 3: Identifying Sub Frame And Guide Bracket Bolts
    G04882515Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the engine mounting bolts (A, B)

    Tightening torque N.m (kgf.m, lb-ft):

    65-85 (6.5-8.5, 47.0-61.5)

    Fig 4: Identifying Engine Mounting Bolts (1 Of 2)
    G04882507Courtesy of KIA MOTORS AMERICA, INC.
    Fig 5: Identifying Engine Mounting Bolts (2 Of 2)
    G04882508Courtesy of KIA MOTORS AMERICA, INC.
  7. Install both sides of the lower arm (A) mounting bolts (B).

    Tightening torque N.m (kgf.m, lb-ft):

    90-120 (9-12, 65.1-86.8)

    Fig 6: Identifying Front Lower Arm And Mounting Bolt
    G04882491Courtesy of KIA MOTORS AMERICA, INC.
  8. Install both sides of the tie rod end (A) self-locking nuts (B). Insert cotter pin after nut is torqued to specifications.

    Tightening torque N.m (kgf.m, lb-ft):

    65-80 (6-8, 43.4-57.8)

    Fig 7: Identifying Tie Rod End, Self-Locking Nut And Cotter Pin
    G04882504Courtesy of KIA MOTORS AMERICA, INC.
  9. Install the front stabilizer link (A) nut (B) to the strut assembly.

    Tightening torque N.m (kgf.m, lb-ft):

    100-120 (10-12, 72.3-86.8)

    Fig 8: Identifying Front Stabilizer Link And Nut
    G04805342Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the wheel and the tire (A) to the front hub (B).

    Tightening torque N.m (kgf.m, lb-ft):

    90-110 (9-11, 65.1-79.5)

    Fig 9: Identifying Front Wheel And Tire From Front Hub
    G04882502Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
  11. Install the connecting bolt (A) between the steering universal joint assembly (B) and the pinion assembly.

    Tightening torque N.m (kgf.m, lb-ft):

    13-18 (1.3-1.8, 9.4-13.0)

    Fig 10: Identifying Bolt Between Steering Universal Joint Assembly
    G04882501Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: After installation, if necessary, adjust the alignment of the steering wheel and front tires
