Manual Transaxle System
›
Manual Transaxle Shift Control System
›
Components (2)
Components (2)

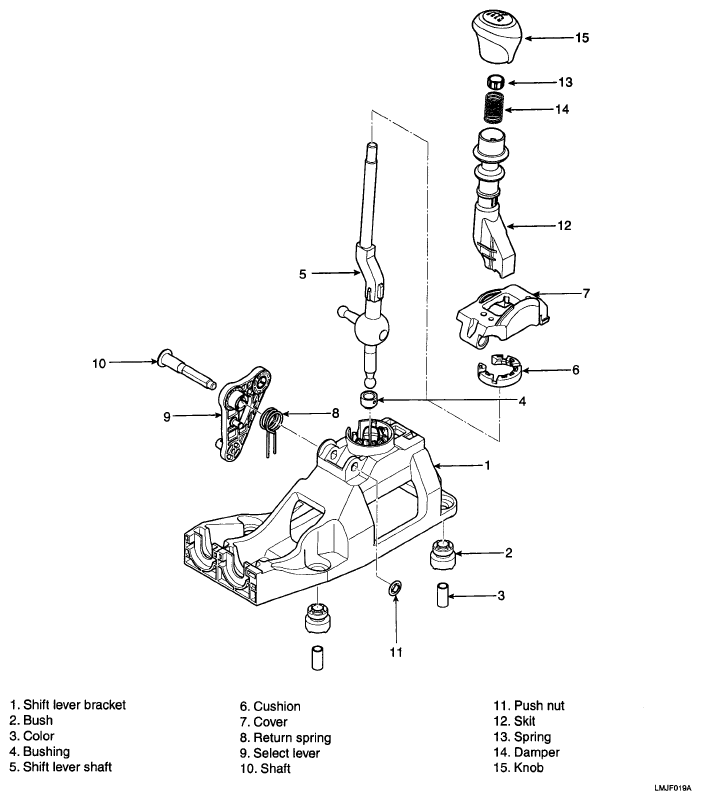

Fig 1: Identifying Manual Transaxle Shift Control Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
