Manual Transaxle System
›
Manual Transaxle Shift Control System
›
Components (I)
Components (I)

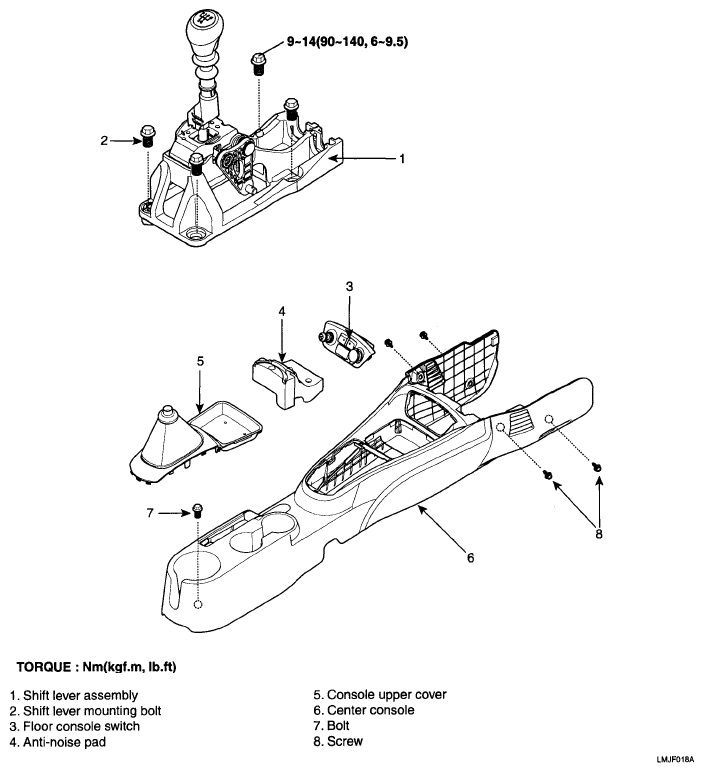

Fig 1: Manual Transaxle Shift Control Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
