Manual Transaxle System
›
Manual Transaxle
›
Components (2)
Components (2)

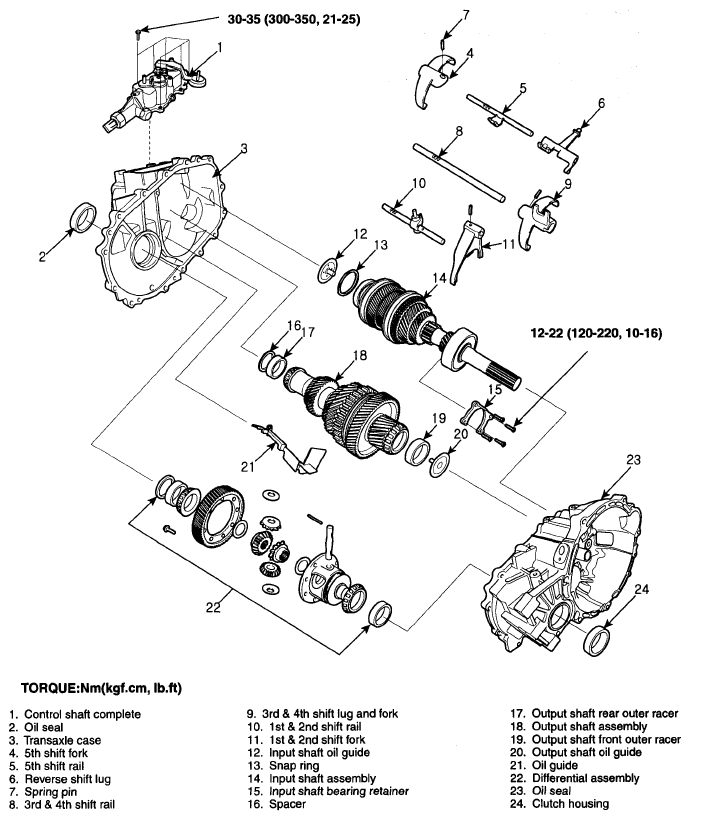

Fig 1: Manual Transaxle Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
